                                      Form of fan strap formation in terms of reliability



When should a timing belt be changed?
Check with dealers of your brand. Some are about gone after 50,000 miles; some longer. If you have an "interference" motor and the belt breaks, the pistons can hit the valves and destroy your engine


service fan strap :

Steps

Part 1

Finding and Evaluating Your Belt

1.
   1
   Park your car in a well lit place. This will make it easier to work under the hood. You can also use a drop light or other supplemental lighting if you deem it necessary.
2.
   2
   Locate the belt in question. Most belts will be found on the side of the engine block. Serpentine belts are easily identified because they weave through several pulleys. V-belts are looped around two pulleys and there are two or more belts overlapping at a point, forming a V-shape. You should replace the belt:

   • if it is frayed or tearing.
   • if it has cracks or missing chunks.
   • if the belt has coolant or oil on it.
   • These conditions make the belt incapable of properly running its components, which can lead to major problems for your engine. If for any reason you cannot locate an accessory belt or gain easy access to it then you should take your vehicle to professional.^[1]

Part 2

Removing the Old Belt

1.
   1

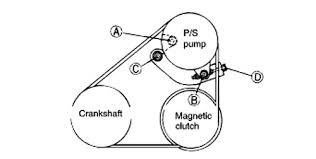

   Locate a routing diagram. This can usually be found posted underneath the hood of your car or in your service manual for serpentine belts (S-belts).^[2] If you drive a much older car, you may have a multi-belt design (V-belt). Either way, if you cannot find a routing diagram you should take a picture or draw one before removing the belt(s).

   • Be sure to make note of whether the grooved side or flat side of the belt makes contact with each pulley. It is important not to put the new belt on backwards.
2.
   2
   Release the tension on the belt. There are a few things to remember when releasing tension on a belt.

   • For serpentine belts this is done by compressing the spring loaded tensioner.
   • The tensioner is just another pulley that the belt runs over, but only serves to keep tension on the belt and does not power any accessories.
   • Some tensioners can be compressed by turning them with simple hand tools such as a wrench, and others may require a special tool. Usually twisting the pulley clockwise will compress the spring.

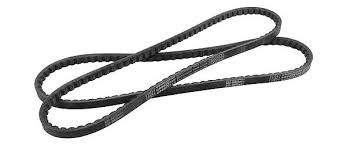

   • V-belts do not have an automatic tensioner. They can be removed by adjusting the position of one of their pulleys to release tension.
   • To loosen a pulley, turn it with a wrench or specialized tool. By convention, counter-clockwise will loosen the pulley.
3.
   3
   Remove the belt. Once tension is released, the belt should slide off of the other pulleys easily.
4.

   Check the pulleys. One reason for a damaged belt is a malfunctioning pulley. You should check the tensioner and all pulleys that the belt contacts. If one wobbles or does not spin freely then you may need to replace it.









Tips

• Clean up any oil in the vicinity of your belt. Oil degrade the belt quickly, leading to more problems.
• If you notice oil or debris on pulleys, you should clean them thoroughly with a wire brush and brake cleaner before installing the new belt.

Warnings

• Spring loaded tensioners can release quickly and forcefully. If you do not have the proper tools or are uncomfortable releasing/tightening the tensioner then you should take your vehicle to a professional.
• Do not put your hand, or any part of your body, into contact with anything spinning or moving on a running vehicle.
• There is ONLY ONE configuration for a serpentine belt. Even if it appears to fit differently than is shown in your routing diagram this can lead to pulleys being turned backwards and cause serious damage to your vehicle.

Things You’ll Need

• Gloves
• Hand Tools
• Wire Brush
• Brake Cleaner
• Replacement Belt





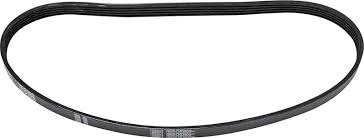

Most modern vehicles come equipped with serpentine belts, though they may occasionally be called fan belts. Older vehicles may have belts that are used only to power the fans that cool the radiator. These belts are very similar and may be treated in the same fashion. A noisy fan or serpentine belt can make chirping, squeaking or squealing sounds that may be consistent or may come and go. Often, these sounds indicate an issue that may need to be resolved like a loose or damaged belt.





Steps

Method 1

Applying Belt Dressing to Neoprene Belts

1.
   1
   Ensure your vehicle is equipped with a neoprene belt. Most modern vehicles have a serpentine belt instead of a fan belt, though the names may be used interchangeably. Older model vehicles and some high performance applications still utilize fan belts instead of electric fans. Older belts were made of neoprene and would benefit from the application of belt dressing, but newer EPDM-made belts may dry out as a result of using belt dressing.^[1]

   • If your fan belt was installed after the year 2000, it is likely an EPDM-made belt.
   • The two belts are difficult to tell apart visually until they are worn out and need to be replaced.
2.
   2
   Open the hood. You will need to apply the belt dressing directly onto the belt. In order to do so, you will need to open the hood of the vehicle and remove any cowl cover that may be in place over the fan belt itself. This may require the use of some basic hand tools like a socket or hand wrench.

   • Some vehicles have engine covers that will need to be removed.
   • You will need direct line of sight and access to the belt while the engine is running.
3.
   3
   Locate the fan belt. The fan belt will likely be located at the front of the engine, attached to a pulley that rotates the cooling fan or fans for the radiator. It will often be black or grey. You may be able to locate it faster by starting at the radiator fan and working backward.

   • In many older American vehicles, the fan belt is connected to shaft with a large metal fan at the end and is easy to identify.
   • Serpentine or accessory belts that serve the same function as a fan belt may be on the side of a horizontally mounted engine.
4.
   4
   Start the vehicle. Ensure the vehicle is in park with the parking brake engaged, then start the engine. You will need the engine to be running in order to apply the belt dressing evenly over the entire length of the belt.

   • Leave the hood open and engine covers removed when starting the engine.
5. 5
   Spray the belt dressing directly onto the belt. With the engine running, spray the belt dressing directly onto the back of the fan belt. As the engine runs, the fan belt will be moving quickly, so you can leave the can in one place and spray onto the belt as it spins.

   • Spray the belt dressing onto the belt until the entire belt is wet.
   • The squeaking from the fan belt should stop almost immediately.

Method 2

Tightening or Aligning a Fan Belt

1.
   1
   Inspect the belt for misalignment. A common cause of noisy fan belts is a slight misalignment of the belt on the pulleys. With the hood open, examine the belt to ensure it is mounted on the top most pulley completely straight. If you are unsure, place a tape measure along the pulley to provide yourself with a frame of reference.

   • If the belt is offset even slightly, it will cause squeaking, squealing or chirping.
   • A belt that is not properly aligned with wear out faster.
2.
   2
   Identify signs of damage or excessive wear. If your belt needs to be replaced, it will often become noisy as a result of the wear or damage. Shine a light on the belt and look at it closely. If there are any visible cracks or chunks of belt missing, the belt should be replaced immediately.

   • Modern EPDM-made belts are designed to last up to 100,000 miles before being replaced, but may wear prematurely due to misalignment or unusual driving conditions.
   • Neoprene belts must be replaced every 30,000 to 60,000 miles.
3.
   3
   Locate the tensioner pulley. Some vehicles come equipped with a tensioner pulley that applies tension to the serpentine or fan belts. If you are unsure if your vehicle came equipped with a tensioner pulley, refer to the service manual for your specific year, make and model vehicle.^[8]

   • The tensioner pulley is often bolted directly to the engine block and has an opening that will fit a ½ inch drive ratchet.
   • Not all vehicles come equipped with a tensioner pulley.
4.
   4
   Replace the tensioner pulley. If the tensioner pulley (or auto tensioner) is too worn out to be able to apply sufficient tension to the belt, you will need to replace it. You should not be able to press on the pulley to relieve belt tension by hand. If you are able to, the tensioner must be replaced. Most tensioners are held in place using only one or two bolts.

   • Remove the old tensioner by removing the bolts passing through it and into the engine block.
   • You may want to replace the belt at the same time due to any damage that may have resulted from the loose tensioner.
5.
   5
   Tighten the tensioner. In some vehicles, the belt tension is established by an adjustable bracket on an accessory such as the alternator. In these cases, loosen the two bolts that pass through the adjustable eyelet on the bracket. Slide a pry bar between the alternator and the engine block and pry the alternator away from the engine with the belt over the pulley. Maintain that tension while you tighten the two bolts you loosened in the eyelets.

   • This task may be easier to accomplish with a friend helping maintain the tension on the belt.
   • Be careful to ensure the belt is completely straight on the pulley.

Method 3

Replacing the Belt

1.
   1
   Purchase a replacement belt. You can purchase a replacement belt from your local auto parts store. Make sure to provide them with the exact year, make and model of the vehicle as well as engine size so you receive the correct replacement belt.

   • It is recommended that you use an EPDM style belt to replace your old one.
   • Compare your new belt to the old one to ensure the new belt is the proper length and width.
2.
   2
   Relieve the tension on the belt. If your vehicle came equipped with an auto tensioner pulley, it can usually be loosened by inserting the end of a ½ inch drive ratchet into the hole at the center of the pulley. In some vehicles, it may be a bolt head you will need to locate the proper size wrench to turn. Twist the pulley clockwise to bend the tensioner arm down and remove the tension from the belt.

   • If the belt tension is held in place using the alternator bracket, loosen the bolts that pass through the eyelets on the bracket to relieve the belt tension.
3.
   3
   Remove the belt from the engine. Make note of how the belt is run through the engine. If it is strictly for use on the fan, it will have very few twists and turns, but if it is a more modern serpentine belt design, it may need to pass through and around a number of pulleys. Your vehicle’s service or owner’s manuals should provide a diagram on how the belt is to be run, but you still may want to get a good look at it before removing it.

   • If you do not have a diagram of how the belt should be run, take a picture of the old belt with your phone before removing it.
4.
   4
   Install the new belt. Run the new belt through the pulleys in the same way the previous one was. Be sure the belt fits onto each pulley evenly and in a completely straight line to avoid damaging the belt and making lots of noise.

   • Refer to the owner’s or service manual for your specific vehicle to be sure you’ve run the fan or serpentine belt correctly.
   • Running the belt at an angle will result in loud squealing. Be sure it is mounted flat and evenly.
5.

   Apply tension to the belt. With the new belt in place, relieve the tension you have applied to the auto tensioner to secure it. In vehicles equipped with a bracket to apply tension, insert a pry bar between the bracket and the block and pry it away from the engine. Tighten the eyelet bolts with tension applied.

   • Visually inspect the new belt to ensure it is straight.
   • Start the vehicle to check for squealing.









  Adjustment

Belt tension is not adjustable. Belt adjustment is maintained by an automatic (spring load) belt tensioner.
The belts used on these vehicle are equipped with automatic (spring load) tensioners which maintain tension. No adjustment is necessary or possible.

Belt Tension Inspection

Inspect the drive belt for signs of glazing or cracking. A glazed belt will be perfectly smooth from slippage, while a good belt will have a slight texture of fabric visible. Cracks will usually start at the inner edge of the belt and run outward. All worn or damaged drive belts should be replaced immediately.
Inspect the drive belt for signs of glazing or cracking. A glazed belt will be perfectly smooth from slippage, while a good belt will have a slight texture of fabric visible. Cracks will usually start at the inner edge of the belt and run outward. All worn or damaged drive belts should be replaced immediately.

Drive Belt Routings

The belt routing schematics are published from the latest information available at the time of publication. If anything differs between these schematics and the Belt Routing Label, use the schematics on Belt Routing Label. This label is located in the engine compartment.


Accessory serpentine belt routing-3.7L and 4.7L gasoline engines



Fig. Accessory serpentine belt routing-3.9L, 5.2L and 5.9L LDC gasoline engines Accessory serpentine belt routing-3.9L, 5.2L and 5.9L LDC gasoline engines


Fig. Accessory serpentine belt routing: Alternator (1), idler pulley (2), P/S pump (3), A/C compressor (4), crankshaft (5), belt tensioner (6) and water pump (7)-5.7L engine Accessory serpentine belt routing: Alternator (1), idler pulley (2), P/S pump (3), A/C compressor (4), crankshaft (5), belt tensioner (6) and water pump (7)-5.7L engine


Fig. Accessory serpentine belt routing-5.9L HDC and 8.0L gasoline engines with A/C Accessory serpentine belt routing-5.9L HDC and 8.0L gasoline engines with A/C



Fig. Accessory serpentine belt routing-5.9L HDC and 8.0L gasoline engines without A/C

Accessory serpentine belt routing-5.9L HDC and 8.0L gasoline engines without A/C

The belt routing schematics are published from the latest information available at the time of publication. If anything differs between these schematics and the Belt Routing Label, use the schematics on Belt Routing Label. This label is located in the engine compartment.



Fig. Accessory serpentine belt routing-2001-03 5.9L Diesel engines with A/C

Accessory serpentine belt routing-2001-03 5.9L Diesel engines with A/C



Fig. Accessory serpentine belt routing-2001-03 5.9L Diesel engines without A/C

Accessory serpentine belt routing-2001-03 5.9L Diesel engines without A/C



Fig. Accessory serpentine belt routing-2004-05 5.9L Diesel engines with A/C

Accessory serpentine belt routing-2004-05 5.9L Diesel engines with A/C



Fig. Accessory serpentine belt routing-2004-05 5.9L Diesel engines without A/C

Accessory serpentine belt routing-2004-05 5.9L Diesel engines without A/C



Fig. Accessory serpentine belt routing-A/C compressor (1), Without A/C (2), Power Steering Pump (3), Water Pump (4), Crankshaft Pulley (5), Auto tensioner (6), Alternator (7), Idler pulley (8)

Accessory serpentine belt routing-A/C compressor (1), Without A/C (2), Power Steering Pump (3), Water Pump (4), Crankshaft Pulley (5), Auto tensioner (6), Alternator (7), Idler pulley (8)

Removal & Installation

1. Attach a socket/wrench to the pulley mounting bolt of automatic tensioner.

2. Rotate the tensioner assembly clockwise (as viewed from front) until tension has been relieved from belt.

3. Remove the belt from idler pulley first.

4. Remove the belt from vehicle.

   WARNING

   When installing the accessory drive belt, the belt must be routed correctly. If not, engine may overheat due to water pump rotating in wrong direction. The correct belt with correct length must be used.








   Fig. Accessory serpentine belt routing-A/C compressor (1), Without A/C (2), Power Steering Pump (3), Water Pump (4), Crankshaft Pulley (5), Auto tensioner (6), Alternator (7), Idler pulley (8)
   Accessory serpentine belt routing-A/C compressor (1), Without A/C (2), Power Steering Pump (3), Water Pump (4), Crankshaft Pulley (5), Auto tensioner (6), Alternator (7), Idler pulley (8)

5. Position drive belt over all pulleys except idler pulley. This pulley is located between generator and A/C compressor.

6. Attach a socket/wrench to pulley mounting bolt of automatic tensioner .

7. Rotate socket/wrench clockwise. Place belt over idler pulley. Let the tensioner rotate back into place.

8. Remove wrench. Be sure belt is properly seated on all pulleys.

9. Check belt indexing marks.


3.7L & 4.7L Engines

WARNING

Do not let tensioner arm snap back to the freearm position, sever damage may occur to the tensioner.

Belt tension is not adjustable. Belt adjustment is maintained by an automatic (spring load) belt tensioner.

1. Disconnect negative battery cable from battery.

2. Rotate belt tensioner until it contacts it's stop. Remove belt, then slowly rotate the tensioner into the freearm position..

3. Check condition of all pulleys.

   WARNING

   When installing the serpentine accessory drive belt, the belt MUST be routed correctly. If not, the engine may overheat due to the water pump rotating in the wrong direction.


To install:

1. Install new belt. Route the belt around all pulleys except the idler pulley. Rotate the tensioner arm until it contacts it's stop position. Route the belt around the idler and slowly let the tensioner rotate into the belt. Make sure the belt is seated onto all pulleys.






   Fig. Accessory serpentine belt routing-3.7L and 4.7L gasoline engines
   Accessory serpentine belt routing-3.7L and 4.7L gasoline engines

2. With the drive belt installed, inspect the belt wear indicator. On 4.7L Engines only, the gap between the tang and the housing stop (measurement A) must not exceed 24 mm (.94 inches). If the measurement exceeds this specification replace the serpentine accessory drive belt.






   Fig. With the drive belt installed, inspect the belt wear indicator. On 4.7L engines, the gap between the tang and the housing stop (measurement A) must not exceed 0.94 in. (24mm)
   With the drive belt installed, inspect the belt wear indicator. On 4.7L engines, the gap between the tang and the housing stop (measurement A) must not exceed 0.94 in. (24mm)


3.9L & 5.2L And 8.0L Engines
Drive belts are equipped with a spring loaded automatic belt tensioner. This belt tensioner will be used on all belt configurations, such as with or without power steering or air conditioning. For more information, refer to Automatic Belt Tensioner, proceeding in this group.
Attach a socket/wrench to pulley mounting bolt of automatic tensioner. The threads on the pulley mounting bolt are left- hand. Relax the tension from the belt by rotating the tensioner counterclockwise (as viewed from front). When all belt tension has been relaxed, remove belt from tensioner pulley first and other pulleys last.



Fig. View of the pulley bolt (1), idler pulley (2), tensioner pulley (3), tensioner (4) and tensioner mounting bolt (5)

View of the pulley bolt (1), idler pulley (2), tensioner pulley (3), tensioner (4) and tensioner mounting bolt (5)

To install:

WARNING

When installing the accessory drive belt, the belt must be routed correctly. If not, engine may overheat due to water pump rotating in wrong direction. The correct belt with correct length must be used.

WARNING

If the pulley is to be removed from the tensioner, its mounting bolt has left-hand threads.

1. Position drive belt over all pulleys except tensioner pulley.

2. Attach a socket/wrench to pulley mounting bolt of automatic tensioner.

3. Rotate socket/wrench counterclockwise. Install belt over tensioner pulley. Let tensioner rotate back into place. Remove wrench. Be sure belt is properly seated on all pulleys.


5.7L Engine

1. Remove the air intake tube between intake manifold and air filter assembly..

2. Release the belt tension by rotating the tensioner counterclockwise with a 15 mm wrench on the tensioner pulley bolt. Rotate belt tensioner until belt can be removed from pulleys.

3. Remove belt.

4. Gently release tensioner.


To install:



Fig. Accessory serpentine belt routing: Alternator (1), idler pulley (2), P/S pump (3), A/C compressor (4), crankshaft (5), belt tensioner (6) and water pump (7)-5.7L engine

Accessory serpentine belt routing: Alternator (1), idler pulley (2), P/S pump (3), A/C compressor (4), crankshaft (5), belt tensioner (6) and water pump (7)-5.7L engine

NOTE

When installing accessory drive belt onto pulleys, make sure that belt is properly routed and all V-grooves make proper contact with pulleys.

1. Position the drive belt over all pulleys except for the water pump pulley.

2. Rotate tensioner counterclockwise and slip the belt over the water pump pulley.

3. Gently release tensioner.

4. Install the air intake tube between intake manifold and air filter assembly.


5.9L Diesel Engine

WARNING

Do not attempt to check belt tension with a belt tension gauge on vehicles equipped with an automatic belt tensioner.

Drive belts on diesel engines are equipped with a spring loaded automatic belt tensioner. This belt tensioner will be used on all belt configurations, such as with or without air conditioning.

1. Depending on the year of the vehicle, a ³ / ₈ inch or ¹ / ₂ inch square hole is provided in the automatic belt tensioner. Attach a ³ / ₈ inch or ¹ / ₂ inch drive-long handle ratchet to this hole.

2. Rotate ratchet and tensioner assembly clockwise (as viewed from front) until tension has been relieved from belt.

3. Remove belt from water pump pulley first.

4. Remove belt from vehicle.






   Fig. Accessory serpentine belt routing-2001-03 5.9L Diesel engines with A/C
   Accessory serpentine belt routing-2001-03 5.9L Diesel engines with A/C






   Fig. Accessory serpentine belt routing-2001-03 5.9L Diesel engines without A/C
   Accessory serpentine belt routing-2001-03 5.9L Diesel engines without A/C






   Fig. Accessory serpentine belt routing-2004-05 5.9L Diesel engines with A/C
   Accessory serpentine belt routing-2004-05 5.9L Diesel engines with A/C






   Fig. Accessory serpentine belt routing-2004-05 5.9L Diesel engines without A/C
   Accessory serpentine belt routing-2004-05 5.9L Diesel engines without A/C


To install:

WARNING

When installing the accessory drive belt, the belt must be routed correctly. If not, engine may overheat due to water pump rotating in wrong direction. The correct belt with correct length must be used. Position drive belt over all pulleys except water pump pulley.

1. Attach a 1/2 inch ratchet to tensioner.

2. Rotate ratchet and belt tensioner clockwise. Place belt over water pump pulley. Let tensioner rotate back into place. Remove ratchet. Be sure belt is properly seated on all pulleys.


5.9L Gasoline Engines

NOTE

The belt routing schematics are published from the latest information available at the time of publication. If anything differs between these schematics and the Belt Routing Label, use the schematics on Belt Routing Label. This label is located in the engine compartment.

WARNING

Do not attempt to check belt tension with a belt tension gauge on vehicles equipped with an automatic belt tensioner.

1. Drive belts on these engines are equipped with a spring loaded automatic belt tensioner. This belt tensioner will be used on all belt configurations, such as with or without power steering or air conditioning.

2. Attach a socket/wrench to pulley mounting bolt of automatic tensioner.

3. Rotate tensioner assembly clockwise (as viewed from front) until tension has been relieved from belt.

4. Remove belt from idler pulley first.

5. Remove belt from vehicle.






   Fig. View of the idler pulley (1), tensioner (2) and fan blade (3)
   View of the idler pulley (1), tensioner (2) and fan blade (3)


To install:

WARNING

When installing the accessory drive belt, the belt must be routed correctly. If not, engine may overheat due to water pump rotating in wrong direction..

1. Position drive belt over all pulleys except idler pulley. This pulley is located between generator and A/C compressor.

2. Attach a socket/wrench to pulley mounting bolt of automatic tensioner .

3. Rotate socket/wrench clockwise. Place belt over idler pulley. Let tensioner rotate back into place. Remove wrench. Be sure belt is properly seated on all pulleys.

4. Check belt indexing marks.



MITSUBISHI 1345A078 GENUINE OEM SERPENTINE TENSIONER



2007 C6 Corvette Wiring Diagrams



Saturn 3 6 Engine Diagramon 4 3 Timing Chain Diagram



8 - 47 2010 DAYCO PRODUCTS , LLC



2006 chevy 3500 truck serpentine belt diagrams




SOLVED: Fan belt rout for an audi a4





Best way to cure belt noise on wet startup? - Page 2 - Chevrolet Colorado & GMC Canyon







how do US remove the alternator from my 2004 chevy Colorado





GENERATOR REPLACEMENT

REMOVAL PROCEDURE

1. Disconnect the battery negative cable.
2. Remove the drive belt.
3. Raise and support the vehicle only high enough to access the A/C compressor through the wheelhouse. Refer to Vehicle Lifting.
4. Remove the left front wheel.
5. Remove the left wheelhouse liner
6. 1. Disengage the A/C compressor electrical connector from the bracket. IMPORTANT: Evacuation of the A/C refrigerant will not be necessary.
   2. Remove the A/C compressor mounting bolts (2, 3) ONLY. The upper mounting bolt (2) will remain with the A/C compressor (1).
   3. Lower the vehicle.
   4. Reposition the protective boot (4) from the generator output BAT terminal (2) for access.
   5. Remove the generator output BAT terminal nut (6) and disconnect the generator lead (5) from the generator.
   6. Disconnect the wiring harness connector (1) from the generator.
   7.
   8. Remove the 3 generator mounting bolts.
   9. Remove the engine lift bracket, in order to gain clearance to remove the generator.
   10. Position the A/C compressor forward, in order to gain clearance to remove the generator.
   11. Remove the generator from the engine.

Chevy Radiator Questions

A radiator is normally used for lowering the temperature in a car, which has an internal combustion engine. The temperature in this engine is lowered with the help of a liquid called coolant, which flows through the engine block where it is heated and then through the radiator where the liquid looses heat. The liquid then passes back through the engine again. The system also comprises other parts such as a water pump that enables the coolant to flow through and an axial fan to move air through the radiator. Since any motor or electrical part is prone to technical issues, various problems could occur in a Chevrolet radiator leading to questions on how to deal with them. Listed below are a few common questions answered by Experts.

If a Chevy radiator fan is not working but the air-conditioner fan is turning on, could there be an issue with the engine temperature?

The engine is likely to overheat while driving if the Chevy radiator fan is not working properly. One would need to install a new radiator fan motor or else there could be a risk of overheating or damage. A motor for the radiator fan can be easily purchased from a local store that sells Chevy parts. It is also advisable to avoid switching on the air conditioner if the radiator fan is not working, as this will generate additional heat.

How does one remove the cooling fan shroud in a Chevrolet radiator?

Ensure that the ignition is turned off and all electrical loads are off before undertaking any repair work on the vehicle. Disconnect the negative battery cable and drain the cooling system partly. Take out the transmission oil cooler lines located below the cooling fan shroud. Then remove both engine mount struts and the front fender diagonal brace located on the upper left side. Disconnect the inlet hose from the radiator and remove the air cleaner assembly. Detach the PCM harness and the cooling fan shields if they are present. Then remove the bolts and clip from the cooling fan shroud and the radiator upper support brackets that are attached. This should enable you to lift the cooling fan shroud out of the vehicle.

Where is the drain plug for a Chevy radiator located and how is it opened?

The drain plug or drain cock is located at the bottom of the radiator in a plastic bottle or plastic sides that are attached to the radiator core. In order to open the drain plug one can use a pair of pliers or a screwdriver to turn the plug anti-clockwise and loosen it to allow the coolant to flow out. To close it, just put the plug back in and turn it clockwise till it shuts completely and feels tight.

What could be the problem in a Chevrolet radiator if the coolant is not flowing through the engine or the radiator causing the engine to overheat?

Such an issue is likely to be caused by air that is trapped in the cooling system of the vehicle. One can try to remove the air by taking out the hose located right on top of the engine and ensuring that the coolant is filled to the brim. Then running the engine to see if the air escapes. Repeat this process a few times if required always ensuring that the coolant is filled up. In case this does not work, then it is best to consult an Expert who will be able to help with the issue.

What could be the problem in a 1999 Chevy Malibu radiator where the radiator fan works when connected straight to the battery but does not switch on with the engine?

To isolate the problem one can use a specific instrument called a Class 2 Scan tool to check the coolant temperature and understand whether the computer is turning on the circuit. One would need to ensure that while conducting a scan on the computer one also checks the fan control parameters.

There are many parts in a Chevy radiator that can develop technical problems wherein each would need a specific solution. In such a scenario, it is preferable to get advice from Experts who can provide the correct information and answer any questions that may arise.





On vehicles with an electric cooling fan, disable the power to the fan by disengaging the fan motor wiring connector or removing the negative battery cable before replacing or adjusting the drive belts. Otherwise, the fan may engage even though the ignition is


2000 Land Rover Discovery

Belt tension can be checked by pressing on the belt at the center point of its longest straight span. The belt should give approximately ¹ / ₄ - ¹ / ₂ in. (6-13mm). If the belt is loose it will slip, whereas if the belt is too tight it will damage the bearings in the driven unit.
For the purposes of V-belt tensioning, there are generally three types of mounting for the various components driven by the drive belt. The first method, referred to as pivoting type without adjuster, is designed so that the component is secured by at least 2 bolts. One of the bolts is a pivoting bolt and the other is the lockbolt. When both bolts are loosened so that the component may move, the component pivots on the pivoting bolt. The lockbolt passes through the component and a slotted bracket, so that when the lockbolt-s nut is tightened the component is held in that position. There are not automatic adjusting mechanisms used with this type of mounting.
The second method of component mounting, referred to as pivoting type with adjuster, is almost identical except for the addition of an adjuster of some sort. Usually the adjuster is composed of a bracket attached to the component and a threaded adjusting bolt. After loosening the pivoting and lockbolts, the adjusting bolt can be tightened or loosened to increase or decrease the drive belt-s tension. With this type of mounting, you do not have to hold the component in a tensioned position and tighten the pivoting and lockbolts; the adjusting bolt does the job for you.
Some versions of this method of mounting use an adjuster which is built into one of the components mounting braces. The brace attaches the component to the engine and incorporates a threaded adjuster in its mid-span, so that when the threaded adjuster is turned the brace shortens or lengthens. This in turn increases or decreases the amount of tension on the component.
The third type of mounting, referred to as stationary type, is designed so that the component is mounted on its brackets. There are no pivots or lockbolts, and the component is not designed to be moved. Rather, this type of mounting uses an extra tensioner idler pulley assembly. The drive belt is tensioned by adjusting the position of the idler pulley, usually accomplished by turning the adjuster bolt on the idler mechanism.



Fig. A typical pivoting accessory with an adjusting bolt



Fig. An accessory that is fixed will have an adjustable pulley-notice the square slot to aid the adjustment

Periodic drive belt tensioning is not necessary, because an automatic spring-loaded tensioner is used with these belts to maintain proper adjustment at all times. The tensioner is also useful as a wear indicator. When the belt is properly installed, the arrow on the tensioner housing must point within the acceptable range lines on the tensioner's face. If the arrow falls outside the range, either an improper belt has been installed or the belt is worn beyond its useful life span. In either case, a new belt must be installed immediately to assure proper engine operation and to prevent possible accessory damage.



Fig. Typical drive belt automatic tensioner wear indicator

These engines, with the exception of the 1MZ-FE and 3MZ-FE engines, are equipped with automatic belt tensioners. Adjusting the belt tension is not possible or necessary.
3.0L (1mz-FE) And 3.3L (3mz-FE) Engines

1. Measure the belt deflection by applying 22 lbs. (98 N) of pressing force to the mid-point on each drive belt between the crankshaft pulley and the alternator (generator), or vane pump pulley.

2. When checking a belt used for over 5 minutes, confirm the deflection value is within the specified one.

3. When reinstalling a belt used for over 5 minutes, perform the check based on the used deflection value.






   Fig. Drive belt deflection value chart.-1MZ-FE and 3MZ-FE engines







   Fig. Drive belt tension value chart.-1MZ-FE and 3MZ-FE engines

4. Refer to the chart with belt deflection values as shown.

5. Measure the drive belt tension and refer to the chart for the correct tension values as shown.

6. When using a belt tension gauge, confirm the accuracy first by using a master gauge.

7. Check the drive belt tension and deflection value after 2 revolutions of engine cranking.


Pivoting Type
Without Adjuster

1. Disconnect the negative battery cable.

2. Loosen the component-s lockbolt and pivoting bolt only enough for the component to move.

3. Using a strong wooden, plastic or metal pry tool, move the component either closer to, or farther away from, the engine to provide the correct tension on the belt.

   WARNING

   If using a metal pry tool, always wrap the end with a rag or towel to prevent accidentally damaging the component from undue stress.

4. Once the proper amount of tension is applied to the drive belt, hold the pry tool with one hand while tightening the lockbolt securely with the other hand.

5. Release the pressure from the pry tool and tighten the pivoting bolt securely.

6. Double check the drive belt-s tension, in case the component moved slightly while tightening the bolts.

7. Connect the negative battery cable.


Stationary Type
Idler Pulley With Adjusting Bolt

1. Loosen the idler bracket pivot bolt and locking bolts.

2. Adjust the belt tension by inserting the proper size ratchet in the square slot of the idler bracket and rotating the bracket until tension is applied.

3. While holding the tension on the belt with the ratchet, tighten the locking bolts, then the pivot bolt.


Idler Pulley Without Adjusting Bolt

1. Loosen the mounting/pivot bolt behind the idler pulley.

2. Swivel the idler pulley with a pair of pliers or a wrench on the bearing mounting until the proper tension is achieved.

3. While holding the idler pulley, at the proper tension, tighten the mounting/pivot bolt.


Drive Belt Routings



Fig. Often the under side of the hood, a label will display the serpentine drive belt routing



Fig. Relieve the belt tension by pivoting the automatic tensioner away from the belt, then remove the belt



Fig. Verifying serpentine belt alignment in the pulley



Fig. Accessory serpentine belt routing-Jeep Grand Cherokee 4.0L engine



Fig. Accessory serpentine belt routing-Jeep Cherokee 1997-02 2.5L or 4.0L engine with A/C



Fig. Accessory serpentine belt routing-Jeep Cherokee (right hand drive) 4.0L engine with A/C



Fig. Accessory serpentine belt routing-Jeep Cherokee (right hand drive) 4.0L engine without A/C



Fig. Accessory serpentine belt routing-Jeep Cherokee 4.0L engine without A/C



Fig. Fig. 51 Accessory serpentine belt routing-Jeep Cherokee 4.0L engine with A/C



Fig. Accessory serpentine belt routing-Jeep Cherokee 2.5L engine with A/C



Fig. Accessory serpentine belt routing-Jeep Cherokee 2.5L engine without A/C



Fig. Accessory serpentine belt routing-Jeep 4.7L Grand Cherokee engine



Fig. Accessory serpentine belt routing-Jeep 3.7L and 4.7L engines



Fig. Serpentine drive belt routing-3.0L (2JZ-GE) engine



Fig. Accessory drive belt routing-3.0L (1MZ-FE) engine



Fig. Serpentine drive belt routing-4.0L (1UZ-FE) and 4.3L (3UZ-FE) engines



Fig.



Fig.



Fig.



Fig.



Fig.



Fig.



Fig. Serpentine drive belt routing-3.0L (2JZ-GE) engine



Fig. Accessory drive belt routing-3.0L (1MZ-FE) engine

naturally fan strap









With AC, US hope





serpentine.

560 × 560 - kaiserwillys.com

{"cb":3,"cl":6,"cr":6,"ct":3,"id":"q9YrGd9LhOzaaM:","isu":"kaiserwillys.com","itg":1,"ity":"jpg","oh":560,"ou":"https://www.kaiserwillys.com/media/catalog/product/cache/1/image/560x560/9df78eab33525d08d6e5fb8d27136e95/7/3/733685_enlarged_1.jpg","ow":560,"pt":"Fan Belt Fits 54-64 Truck, Station Wagon with 6-226 engine","rid":"aOlS91Z7Vy46SM","rmt":0,"rt":0,"ru":"https://www.kaiserwillys.com/fan-belt-fits-54-64-truck-station-wagon-with-6-226-engine","s":"","sc":1,"st":"Kaiser Willys","th":224,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTamZCrTNq8IAWHDhHNovoXgQH0bQ5xWmVFMQpAxpvGLgdyjgp0","tw":224}

142 × 225 - ebay.com

{"id":"lhy1440KziNh1M:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/OkgAAOSw241YlpMS/s-l225.jpg","ow":142,"pt":"Mileage Maker Car \u0026 Truck Engines \u0026 Components for Dodge Avenger ...","rid":"KSzbIXupWu3SSM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Mileage-Maker-Car-Truck-Engines-Components-for-Dodge-Avenger/33612/bn_23530638","s":"Serpentine Belt MILEAGE MAKER 340K4MK (Fits: Dodge Avenger)","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTxhoazc5ELNWqH26C_cvqCliO1lnit4atX_PCd2i2VtUsUs8JXKQ","tw":142}

500 × 500 - iknowparts.com.au

{"cb":15,"ct":12,"id":"sfdCs9nILb4GMM:","isu":"iknowparts.com.au","itg":1,"ity":"jpg","oh":500,"ou":"https://www.iknowparts.com.au/images/ProductImages/500/1A1737.jpg","ow":500,"pt":"1A1737 - FAN BELT - Japanese Truck Replacement Parts for Isuzu ...","rid":"hiQDpl1hYUa4pM","rmt":0,"rt":0,"ru":"https://www.iknowparts.com.au/hino-dutro/xzu605r-euro-5-616-ifs-short-2011/cooling-system/fan-belt-x-2-xzu605-xzu700r-xzu710r","s":"FAN BELT","sc":1,"st":"I Know Parts","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTPd9qYHPZFLchAMHKrKSq6lRFMPDV55CW4bFZtjVh4_rn-jTRN7g","tw":225}

201 × 163 - fixya.com

{"id":"i2rYAraljBxo0M:","isu":"fixya.com","itg":0,"ity":"png","oh":163,"ou":"http://i.fixya.net/uploads/images/clay58_22.png","ow":201,"pt":"I need a timing belt diagram for 2000 2.5 L Ford Ranger - Fixya","rid":"aVYxxkYzUABPoM","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t26480656-need_timing_belt_diagram_2000_2_5_l_ford","s":"Need diagram for timing belt replacement on 93 ford ranger need to know where to line up marks","sc":1,"st":"Fixya","th":130,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRiLz3bJDUGIYDnDayK8Ushs9sgG0wWOIWdHoj-pbvNCawZwAGtHw","tw":160}

225 × 225 - ebay.com

{"cb":6,"cl":6,"cr":6,"ct":6,"id":"bTzUkRArjwcngM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/Ut8AAOSw-29ZS3hs/s-l225.jpg","ow":225,"pt":"Chevrolet K10 Belts, Pulleys, \u0026 Brackets | eBay","rid":"v_dmbgluK_b6AM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Chevrolet-K10-Belts-Pulleys-Brackets/38656/bn_1350752","s":"Gates Drive Belt New Chevy Suburban Express Van Chevrolet K10 Truck for 15460AP (Fits: Chevrolet K10)","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcStmBZFx2I6Rnuj28epFeyw3_Kr_MA7Z9Wvl_5Qm-RizV_naVnO","tw":225}

225 × 225 - ebay.com

{"cl":3,"ct":18,"id":"YVX6_9v8yHOJJM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/I1sAAOSwcB5ZMdEc/s-l225.jpg","ow":225,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Infiniti QX80 | eBay","rid":"DFbZcrsPqgLFKM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Car-Truck-Engine-Belts-Pulleys-Brackets-for-Infiniti-QX80/38656/bn_19526653","s":"Serpentine Belt-Bando WD EXPRESS 676 24007 241 fits 11-13 Infiniti QX56 5.6L-V8 (Fits: Infiniti QX80)","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQFl9BFSPRPbddhV-euWBfHlsOKKfcG7VVMsUYFxllnbAO7wnQ","tw":225}

259 × 195 - fixya.com

{"cb":9,"cl":3,"cr":3,"ct":15,"id":"DHdYwjmhL8pD3M:","isu":"fixya.com","itg":0,"ity":"jpg","oh":195,"ou":"http://i.fixya.net/uploads/images/diagram-fit-serpentine-belt-merc-mb140d-jefcopezhdyfndktpbewxcdf-5-0.jpg","ow":259,"pt":"SOLVED: Diagram to fit serpentine belt for merc mb140d - Fixya","rid":"ur2j6ZsTcqvx7M","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t25829609-diagram_fit_serpentine_belt_merc_mb140d","s":"diagram to fit serpentine belt for merc mb140d - diagram-fit-serpentine-belt","sc":1,"st":"Fixya","th":156,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcS8NWS-YWifYy4wX5dN0wGDF4C3DmTxqsg-enLEbBrtq1daC5eDkA","tw":207}

293 × 300 - belt.purippuri.net

{"id":"CyvXFqSjbq4XMM:","isu":"belt.purippuri.net","itg":0,"ity":"jpg","oh":300,"ou":"http://i.fixya.net/uploads/images/3c3b4dc.jpg","ow":293,"pt":"Replace Serpentine Belt 1989 Jeep Cherokee - Belt Tensioner","rid":"yEIJGmRtUWj1XM","rmt":0,"rt":0,"ru":"http://belt.purippuri.net/replace-serpentine-belt-1989-jeep-cherokee/","s":"Hope This Helps","sc":1,"st":"Belt Tensioner","th":227,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRGOAtofQGZWx1aMkPAPjgvYXRckvL6S2HynCSuveiHteYgPWFJ","tw":222}

400 × 400 - amarjeetautopartsindia.com

{"cb":3,"cl":3,"cr":3,"ct":3,"id":"7-8wBv7ppW2FbM:","isu":"amarjeetautopartsindia.com","itg":0,"ity":"jpg","oh":400,"ou":"https://pimg.tradeindia.com/03585679/b/6/Fan-Belts-for-Trucks-Buses.jpg","ow":400,"pt":"Fan Belts for Trucks Buses - Fan Belts for Trucks Buses Exporter ...","rid":"UFKY-ldOBqCYRM","rmt":0,"rt":0,"ru":"http://www.amarjeetautopartsindia.com/fan-belts-for-trucks-buses-3585679.html","s":"Fan Belts for Trucks Buses","sc":1,"st":"amarjeet motors","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcS5Ie5C_4kmw0AyGyCMhUgCrzEjooTB8XT_jhitFufBjxOiZJ-l9g","tw":225}

200 × 200 - picclick.com.au

{"id":"cE1bb6hJyYFL6M:","isu":"picclick.com.au","itg":1,"ity":"jpg","oh":200,"ou":"https://www.picclickimg.com/d/l400/pict/162114713136_/Hino-Truck-Fs1k-Ranger-50-1996-2002-Fan-Belt.jpg","ow":200,"pt":"Hino Truck Fc3J Ranger 5 1996-2002 Fan Belt 3071A3 \u2022 AUD 37.86 ...","rid":"Qb0XS5P7u69_oM","rmt":0,"rt":0,"ru":"https://picclick.com.au/Hino-FC-Ranger-Truck-291924267627.html","s":"Hino Truck Fs1k Ranger 50 1996-2002 Fan Belt 5171a3","sc":1,"st":"PicClick AU","th":200,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQoA9SQRLLkSzO-fsjfwI18UVVC-wVnDCimtNpx9miw73GBBAuW","tw":200}

225 × 225 - ebay.com

{"id":"Bp7GlS7u5VAKtM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/GZ4AAOSwn-tZMxEw/s-l225.jpg","ow":225,"pt":"Motorcraft Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for ...","rid":"UGahry2gaJ-19M","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Motorcraft-Car-Truck-Engine-Belts-Pulleys-Brackets-for-Lincoln-MKZ/38656/bn_19516308","s":"Serpentine Belt fits 2013-2016 Lincoln MKZ MKC MKT MOTORCRAFT (Fits: Lincoln MKZ)","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTZcNiMNSvSOU9x0kK4fL8ta6fKNIxL8kDwafoYUBx-6FdqO6eO","tw":225}

400 × 400 - truckbusters.co.za

{"cb":15,"ct":12,"id":"MXGdmSYSmWkSkM:","isu":"truckbusters.co.za","itg":1,"ity":"jpg","oh":400,"ou":"http://www.truckbusters.co.za/wp-content/uploads/2014/11/3565-thickbox_default-fan-belt-10a1500.jpg","ow":400,"pt":"Fan Belt \u2013 10A1500 | Truck Busters","rid":"6i17CxYDInekUM","rmt":0,"rt":0,"ru":"http://www.truckbusters.co.za/product/fan-belt-10a1500/","s":"Fan Belt - 10A1500 ...","sc":1,"st":"Truck Busters","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTTzl3bkAISbMpN79qgrZ0JyH6hNP5KMm5h_c5k7xzHegjOlqFR","tw":225}

225 × 169 - ebay.com

{"id":"eBPO-PgHxOSLCM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":169,"ou":"https://i.ebayimg.com/thumbs/images/g/s6cAAOSw9eVXVn8-/s-l225.jpg","ow":225,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Jaguar Super V8 ...","rid":"_aAJ_yk3QWadDM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/amp/Car-Truck-Engine-Belts-Pulleys-Brackets-for-Jaguar-Super-V8/38656/bn_19527143","s":"Bando Serpentine Belt 676 32034 241 V-Belt/Fan Belt","sc":1,"st":"eBay","th":169,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSsqBDzGWyapUosx_fZTDmc0bR-GJqfNt9GFNrSwOwClcz9h5dqkw","tw":225}

225 × 220 - ebay.com

{"id":"b9C-C8NMOL0rKM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":220,"ou":"https://i.ebayimg.com/thumbs/images/g/flIAAOSwrhBZAaud/s-l225.jpg","ow":225,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Mercedes-Benz ...","rid":"h5I6mIi--c7NeM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Car-Truck-Engine-Belts-Pulleys-Brackets-for-Mercedes-Benz-600SL/38656/bn_19533994","s":"Mercedes MERCEDES-BENZ OEM SL600-Serpentine Drive Fan Belt Tensioner 1202000570 (Fits: Mercedes-Benz 600SL)","sc":1,"st":"eBay","th":220,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTqPQEF2g2PF-nxzyq9r13JmJpEAOZ9hA9CEemlzyY7mPmWOFc0ig","tw":225}

400 × 400 - truckbusters.co.za

{"id":"kuUBOA3CA5uchM:","isu":"truckbusters.co.za","itg":1,"ity":"jpg","oh":400,"ou":"http://www.truckbusters.co.za/wp-content/uploads/2014/11/3558-thickbox_default-fan-belt-13a1050c.jpg","ow":400,"pt":"Dayco Alternator Belt \u2013 13A1050C | Truck Busters","rid":"icTgJke2tySYcM","rmt":0,"rt":0,"ru":"http://www.truckbusters.co.za/product/dayco-alternator-belt-13a1050c/","s":"Fan Belt - 13A1050C ...","sc":1,"st":"Truck Busters","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSS_b4QGWLUl8qfqMQbFjAPEnlrYA_UUGFvx5USliBxkHK2u8N-aw","tw":225}

225 × 185 - ebay.com

{"cb":6,"cl":3,"cr":9,"ct":3,"id":"fByg-eI0tmiJuM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":185,"ou":"https://i.ebayimg.com/thumbs/images/g/k58AAOSwGtRX1aZk/s-l225.jpg","ow":225,"pt":"Dayco Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Land Rover ...","rid":"BCulxoau_QbbRM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Dayco-Car-Truck-Engine-Belts-Pulleys-Brackets-for-Land-Rover/38656/bn_19529181","s":"LAND ROVER RANGE ROVER L322 M62 2003-2005 OEM PRIMARY DRIVE SERPENTINE BELT (Fits: Land Rover)","sc":1,"st":"eBay","th":148,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTOAulfccjr6qYauZ1I61ZHwAWIEn6jPLRntk1RsGekuV3WARzbCg","tw":180}

225 × 169 - ebay.com

{"cb":3,"cl":6,"cr":3,"ct":21,"id":"TO79zjn-3mBXvM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":169,"ou":"https://i.ebayimg.com/thumbs/images/g/P0MAAOSwnNBXVn14/s-l225.jpg","ow":225,"pt":"WD Express Car \u0026 Truck Engines \u0026 Components for Nissan NV3500 | eBay","rid":"V1wCwg243geHIM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/WD-Express-Car-Truck-Engines-Components-for-Nissan-NV3500/33612/bn_23449339","s":"Bando Serpentine Belt 676 38041 241 Serpentine Belt/Fan Belt (Fits: Nissan NV3500)","sc":1,"st":"eBay","th":169,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTLeGfI7S2cwH-t7X4em0HvcNIr1Mq_YPtYvHTwqRI0EH39ZD8W","tw":225}

300 × 225 - liveworkdream.com

{"cb":3,"cl":15,"cr":12,"ct":3,"id":"3Mc9Dg_cAHLvZM:","isu":"liveworkdream.com","itg":0,"ity":"jpg","oh":225,"ou":"http://www.liveworkdream.com/wp-content/uploads/2010/10/tensioner2-300x225.jpg","ow":300,"pt":"Dodge Ram 2500 Find Belt Tensioner Pulley Replace Alternator","rid":"i5bfMhc--dC7SM","rmt":0,"rt":0,"ru":"http://www.liveworkdream.com/2010/10/17/how-to-replace-dodge-ram-2500-alternator/","s":"How to Find Dodge Ram 2500 Cummins Diesel Serpentine Belt Tensioner Pulley Location","sc":1,"st":"Live. Work. Dream","th":180,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSEQyWbc3ddcvfTf5Zbc6sYPVZMyLv-4nCQugMPqkHuoCDx5-DBcw","tw":240}

500 × 252 - fixya.com

{"cb":6,"cl":21,"cr":15,"ct":6,"id":"E_au_nx2jhhOZM:","isu":"fixya.com","itg":0,"ity":"gif","oh":252,"ou":"http://i.fixya.net/uploads/images/2345974.gif","ow":500,"pt":"SOLVED: How do I adjust the tension on the alternator belt - Fixya","rid":"ikorOFd2MQnGDM","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t26017527-adjust_tension_alternator_belt_2003","s":"Loosen bolts highlighted in red, and swing bottom of alternator to loosen/tighten the belt. Tightening may require using a prybar ...","sc":1,"st":"Fixya","th":159,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQLSU6yuGBvGlOS3_LoRh4OW8MWEmCMgFiKKFtgadxe9J2kqXTx","tw":316}

500 × 375 - withatruck.com

{"cb":6,"cl":9,"cr":6,"ct":9,"id":"zqFdURDoOra4rM:","isu":"withatruck.com","itg":1,"ity":"jpg","oh":375,"ou":"http://withatruck.com/wp-content/uploads/2016/01/Craftsman-1844400-Planer-or-Jointer-Fan-Belt-0.jpg","ow":500,"pt":"Craftsman 18444.00 Planer or Jointer Fan Belt \u2013 With A Truck","rid":"-UGu02Hc_CHLbM","rmt":0,"rt":0,"ru":"http://withatruck.com/product/craftsman-18444-00-planer-or-jointer-fan-belt/","s":"Craftsman-1844400-Planer-or-Jointer-Fan-Belt-0","sc":1,"st":"With A Truck","th":194,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSrBvYh22ZMIC6rCSSxgXEwYws-uxLQjNx-0hYPGSu-j_tl4gA7","tw":259}

614 × 572 - alibaba.com

{"cb":3,"cl":3,"cr":3,"ct":3,"id":"_bwDazSJaRKiTM:","isu":"alibaba.com","itg":0,"ity":"jpg","oh":572,"ou":"https://sc01.alicdn.com/kf/HTB1BdjiLpXXXXaOXpXXq6xXFXXX8/good-quality-10PK1054-truck-pk-fan-belt.jpg","ow":614,"pt":"Pk Belt, Pk Belt Suppliers and Manufacturers at Alibaba.com","rid":"vNML8--JPeRkTM","rmt":0,"rt":0,"ru":"https://www.alibaba.com/showroom/pk-belt.html","s":"","sc":1,"st":"Alibaba","th":217,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQVJDm5mIBDR7eQOhaCBNHHVxgGgEXBDwt8j8TKucLUkrhEskFZ","tw":233}

400 × 400 - truckbusters.co.za

{"cb":18,"ct":15,"id":"ixU-dNcHyEirLM:","isu":"truckbusters.co.za","itg":1,"ity":"jpg","oh":400,"ou":"http://www.truckbusters.co.za/wp-content/uploads/2014/11/3572-thickbox_default-fan-belt-ribbed-13a1025c.jpg","ow":400,"pt":"Fan Belt Ribbed \u2013 13A1025C | Truck Busters","rid":"Z9rOZBkp4VhQzM","rmt":0,"rt":0,"ru":"http://www.truckbusters.co.za/product/fan-belt-ribbed-13a1025c/","s":"Fan Belt Ribbed - 13A1025C ...","sc":1,"st":"Truck Busters","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTo070w1fA2fSdr4ycxZzr2F_rakHlPDiF5w1HlRUDyZ9g2fr8Vmw","tw":225}

800 × 329 - classicindustries.com

{"id":"_xIM5N2N0tX9rM:","isu":"classicindustries.com","itg":0,"ity":"jpg","oh":329,"ou":"http://www.autopartsdb.net/assets/images/ProductImg/S/SB660.JPG","ow":800,"pt":"1968 Chevrolet Impala Parts | Engine | Acc. Drive Belts | Classic ...","rid":"eB58y08jksjYPM","rmt":0,"rt":0,"ru":"http://www.classicindustries.com/shop/1968/impala/parts/engine/acc--drive-belts/?p\u003d4","s":"66\" 6 Rib Serpentine Belt","sc":1,"st":"Classic Industries","th":144,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcR1KODwACIWEYsgFBJk_sj9TY3XBlaIkwB-n7fhksRQB9h2w38e","tw":350}

109 × 225 - ebay.com

{"id":"BIKotUiDUzm2jM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/B7MAAOSwY3BZMeIu/s-l225.jpg","ow":109,"pt":"GM Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Chevrolet ...","rid":"F9MABQ0oufSiCM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/amp/GM-Car-Truck-Engine-Belts-Pulleys-Brackets-for-Chevrolet-Beretta/38656/bn_19519502","s":"GM OEM-Serpentine Drive Fan Belt 88984195","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTc3sHiEpZb7duxyzIQwOUlQHSJAXM_QxBS-rV3iez_jjavPoqi","tw":109}

437 × 300 - fixya.com

{"id":"mDXvGwgWwGW-XM:","isu":"fixya.com","itg":0,"ity":"jpg","oh":300,"ou":"http://i.fixya.net/uploads/images/tdisline_478.jpg","ow":437,"pt":"SOLVED: Routing belt mercedes b200 turbo - Fixya","rid":"uHLU46HaJ3jrMM","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t13555794-routing_belt_mercedes_b200_turbo","s":"tdisline_478.jpg","sc":1,"st":"Fixya","th":186,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQAU6jPK7IWu9f7O15oNRtkcDrQFIp18E-xaQfTO-907EI2RN7H","tw":271}

400 × 298 - fixya.com

{"id":"BFfrvCf7csK70M:","isu":"fixya.com","itg":0,"ity":"gif","oh":298,"ou":"http://i.fixya.net/uploads/images/9f61356.gif","ow":400,"pt":"Saab 2002 9-3 Accessory Drive Belt question - Fixya","rid":"nNUhKX_qd1m0TM","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t1779317-saab_2002_9_3_accessory_drive_belt","s":"Accessory drive belt routing\u20141.9L diesel (ALH) engines without A/C","sc":1,"st":"Fixya","th":194,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcS24O9cxJBXARQ81Stp0lp3bk3tE8gqp7p19YguA-wLxw1w7vG8","tw":260}

200 × 200 - picclick.com.au

{"cb":18,"cl":3,"ct":12,"id":"NyR8Zrq_mYBpfM:","isu":"picclick.com.au","itg":1,"ity":"jpg","oh":200,"ou":"https://www.picclickimg.com/d/l400/pict/162328653098_/Hino-Bus-Bg300-Bus-Fan-Belt-3071a3.jpg","ow":200,"pt":"Hino Truck Fc3J Ranger 5 1996-2002 Fan Belt 3071A3 \u2022 AUD 37.86 ...","rid":"Qb0XS5P7u69_oM","rmt":0,"rt":0,"ru":"https://picclick.com.au/Hino-FC-Ranger-Truck-291924267627.html","s":"Hino Truck Fm1j Ranger 14 1996-2002 Fan Belt 3071a3 (x2)","sc":1,"st":"PicClick AU","th":200,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQJyxGc3aG32g9QK-ZNT9tupTde1t615zgjSSsZBVNzp_YXPWK5oQ","tw":200}

269 × 300 - fixya.com

{"id":"ZAAYQytKCDNeOM:","isu":"fixya.com","itg":0,"ity":"jpg","oh":300,"ou":"http://i.fixya.net/uploads/images/06d407a.jpg","ow":269,"pt":"2007 audi 2.0 tdi fan belt routing , bre engine code , not - Fixya","rid":"4hYD9oqaFS9_VM","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t9063201-2007_audi_2_0_tdi_fan","s":"Gen \u003d Alternator T \u003d Tensioner AC \u003d Air Conditioning PAS \u003d Power Assisted Steering","sc":1,"st":"Fixya","th":237,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTlwbwKYMBBOTsJHqfkZlot-bAzdTvs3e_NLW6oHqBElnjODFls","tw":213}

664 × 691 - classicparts.com

{"id":"dz_NaJ9_cbhVkM:","isu":"classicparts.com","itg":1,"ity":"jpg","oh":691,"ou":"http://www.classicparts.com/images/83-425.jpg","ow":664,"pt":"Fan Belt, 5/8 Wide Pulley-Classic Chevy Truck Parts","rid":"1FHW-A81RQ5JkM","rmt":0,"rt":0,"ru":"http://www.classicparts.com/1937-52-Fan-Belt-5_8-Wide-Pulley/productinfo/83-425/","s":"(1937-52) Fan Belt, 5/8 Wide Pulley","sc":1,"st":"Classic Parts of America","th":229,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQOvavut_2BhFdabIO9nNznG3Hto72lh3BvktQnIMrYsH_NBeuxAQ","tw":220}

600 × 600 - alibaba.com

{"id":"XayVKpE1NSltmM:","isu":"alibaba.com","itg":0,"ity":"jpg","oh":600,"ou":"https://sc01.alicdn.com/kf/HTB1n26aLpXXXXafaXXXq6xXFXXXv/Dongfeng-truck-spare-parts-4BT-Fan-Belt.jpg","ow":600,"pt":"Truck Fan Belt, Truck Fan Belt Suppliers and Manufacturers at ...","rid":"5JmZePLgqzslOM","rmt":0,"rt":0,"ru":"https://www.alibaba.com/showroom/truck-fan-belt.html","s":"Truck Fan Belt, Truck Fan Belt Suppliers and Manufacturers at Alibaba.com","sc":1,"st":"Alibaba","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSN1I5zKBdL0MkiQY2onv34ret5p8pj8qvzKVUAMeQlt4gaiz9TYg","tw":225}

190 × 225 - ebay.com

{"id":"748-IxHMwsgDqM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/fEYAAOSwEK9TwZRM/s-l225.jpg","ow":190,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Chevrolet V10 ...","rid":"3w9Nun-MrGVAXM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Car-Truck-Engine-Belts-Pulleys-Brackets-for-Chevrolet-V10-Suburban/38656/bn_19546825","s":"Gates 5725 Alternator And Fan Belt (Fits: Chevrolet V10 Suburban)","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQHjARdmvdKftEEhoNZqTfCp7FT6o5eQpabeSoNda6FIpf1ry0W","tw":190}

1000 × 1000 - iknowparts.com.au

{"cb":18,"cl":3,"cr":3,"ct":18,"id":"27Fjaqez4Rf_fM:","isu":"iknowparts.com.au","itg":0,"ity":"jpg","oh":1000,"ou":"https://www.iknowparts.com.au/images/ProductImages/3A1703.jpg","ow":1000,"pt":"3A1703 - FAN BELT - Japanese Truck Replacement Parts for Isuzu ...","rid":"QavVzDz-vt8XRM","rmt":0,"rt":0,"ru":"https://www.iknowparts.com.au/hino-bus/bg300-bus/cooling-system/fan-belt-fsr32-frr33-cvr-cxg-fe537-637-fe657-659-fe-83-95-fan-1-fc3hino","s":"FAN BELT","sc":1,"st":"I Know Parts","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcT3eyNOK8PJkpQ1ehr_xC3ueEHTzlxAe0zXbmkiO_QdQYd9dTSGzg","tw":225}

250 × 170 - autozone.com

{"id":"50DRF9lOCr_kpM:","isu":"autozone.com","itg":0,"ity":"jpg","oh":170,"ou":"http://repairguide.autozone.com/znetrgs/repair_guide_content/en_us/images/0996b43f/80/20/8c/98/small/0996b43f80208c98.jpg","ow":250,"pt":"1995 Ford Truck Explorer 4WD 4.0L FI OHV 6cyl | Repair Guides ...","rid":"qbtGtCzqYPqiHM","rmt":0,"rt":0,"ru":"http://www.autozone.com/repairinfo/repairguide/repairGuideContent.jsp?pageId\u003d0996b43f802d728c","s":"Drive Belt Routings. Click image to see an enlarged view","sc":1,"st":"AutoZone","th":170,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRrQGJ-i-MNzrvl29gryJ3SuK1s4eVMpyZXKbpQoitp4Di53z84","tw":250}

225 × 225 - ebay.com

{"cl":15,"cr":15,"id":"gYx8nPVmZOltnM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/UksAAOSw1WJZNvuK/s-l225.jpg","ow":225,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Willys | eBay","rid":"JluxKdtrwB-NBM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/amp/Car-Truck-Engine-Belts-Pulleys-Brackets-for-Willys/38656/bn_19528315","s":"Fan Belts, 50-52 Willys M38 \u0026 52-57 Willys M38-A1","sc":1,"st":"eBay","th":180,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRO5UPzd2MnowY2cps510jRW9PRVwx7GFHR8VyuX7NYk67zS6sg","tw":180}

400 × 400 - truckbusters.co.za

{"cb":18,"ct":18,"id":"MJF-YmyTMcESoM:","isu":"truckbusters.co.za","itg":1,"ity":"jpg","oh":400,"ou":"http://www.truckbusters.co.za/wp-content/uploads/2014/11/3571-thickbox_default-fan-belt-ribbed-13a1275c.jpg","ow":400,"pt":"Fan Belt Ribbed \u2013 13A1275C | Truck Busters","rid":"mAaUvOGuiIZkkM","rmt":0,"rt":0,"ru":"http://www.truckbusters.co.za/product/fan-belt-ribbed-13a1275c/","s":"Fan Belt Ribbed - 13A1275C ...","sc":1,"st":"Truck Busters","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSc1LaU-GDCJ_sheXgf3OZs6I4Sc8kDlPTQN_-BrdOz04BLDSkfgA","tw":225}

500 × 500 - alibaba.com

{"id":"tUkp60-Sg1FRYM:","isu":"alibaba.com","itg":0,"ity":"jpg","oh":500,"ou":"https://is.alicdn.com/img/pb/909/692/224/1224692909_296.jpg","ow":500,"pt":"491q-1300011,Toyota Hiace 4y Auto Fan Belt,Auto Parts Radiator ...","rid":"Qr_4ykMVvX9FHM","rmt":0,"rt":0,"ru":"https://www.alibaba.com/product-detail/491Q-1300011-toyota-hiace-4Y-auto_960844278.html","s":"491Q-1300011,toyota hiace 4Y auto fan belt,auto parts radiator cooling fan","sc":1,"st":"Alibaba","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTXsWWfj0Nc8afub5jcaRzeKLipDVVrCqozvr45uKQeV1KJUspVOQ","tw":225}

228 × 228 - japspareparts.com.au

{"id":"duDQHwoLxCBp1M:","isu":"japspareparts.com.au","itg":0,"ity":"jpg","oh":228,"ou":"https://www.japspareparts.com.au/image/cache/catalog/feed_2/98982-4A1715-228x228.jpg","ow":228,"pt":"UD TRUCK BUS AND CRANE","rid":"HFn5Mu5ljxKFHM","rmt":0,"rt":0,"ru":"http://www.japspareparts.com.au/ud-truck-bus-and-crane?sort\u003dp.sort_order\u0026order\u003dASC\u0026limit\u003d15\u0026page\u003d453","s":"UD TRUCK BUS AND CRANE CWB483/CW385/CW445 2002- FAN BELT 5171A4","sc":1,"st":"UD TRUCK BUS AND CRANE","th":182,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQstXhWSH7-4cvB2DlMtzbZlJGzUjr80Lv_V7UZucf1LFYbq8PuJA","tw":182}

342 × 342 - guide.alibaba.com

{"cb":3,"ct":3,"id":"K-aMvFjRvJFCGM:","isu":"guide.alibaba.com","itg":0,"ity":"jpeg","oh":342,"ou":"https://guideimg.alibaba.com/images/shop/2016/10/05/76/djs-tractor-parts-fan-belt-ab-402d_27266676.jpeg","ow":342,"pt":"Cheap Ac Fan Belt, find Ac Fan Belt deals on line at Alibaba.com","rid":"otiEzArxJ2MKhM","rmt":0,"rt":0,"ru":"https://guide.alibaba.com/shopping-guides/ac-fan-belt.html","s":"Get Quotations · DJS Tractor Parts / Fan Belt - AB-402D","sc":1,"st":"Alibaba","th":224,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTBiGAJ-Hw_fwWLfI1E3272lXY14tp-Qd5w1Gob5fQZ6HPthxh5Gg","tw":224}

500 × 183 - autozone.com

{"cb":3,"id":"gWtd5cSbidKQxM:","isu":"autozone.com","itg":0,"ity":"gif","oh":183,"ou":"http://repairguide.autozone.com/znetrgs/repair_guide_content/en_us/images/0996b43f/80/22/f5/a0/medium/0996b43f8022f5a0.gif","ow":500,"pt":"Repair Guides | Engine Mechanical Components | Accessory Drive ...","rid":"p4V-y-TgXLZgGM","rmt":0,"rt":0,"ru":"http://www.autozone.com/repairinfo/repairguide/repairGuideContent.jsp?pageId\u003d0996b43f8037936e","s":"Accessory drive belt routing -3.0L engine","sc":1,"st":"AutoZone","th":136,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSKZ3X_Kg9HbI77Ppr9JJUIZLWXKK8jSkuENhD5c9Azhe6B8mIDew","tw":371}

258 × 202 - fixya.com

{"cl":6,"id":"XEY9AmhooTypEM:","isu":"fixya.com","itg":0,"ity":"gif","oh":202,"ou":"http://www.fixya.com/uploads/images/8263E1E.gif","ow":258,"pt":"Ford Taurus 4g63 cam belt diagram Questions \u0026 Answers (with ...","rid":"Ll51n8fwAnifSM","rmt":0,"rt":0,"ru":"http://www.fixya.com/tags/4g63_cam_belt_diagram/cars/ford/taurus","s":"8263E1E.gif","sc":1,"st":"Fixya","th":161,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRMfVzXJxkKZ3ZVu6-3gHk-0cIc2IuGAAwHeT-mnVlhA9taPzVU","tw":206}

600 × 226 - autoinsidernews.com

{"id":"b0uXuP7qVTpSIM:","isu":"autoinsidernews.com","itg":0,"ity":"jpg","oh":226,"ou":"http://www.macsautoparts.com/assets/macs/images/size/600x/sku/64-17851.jpg","ow":600,"pt":"Miscellaneous - Fan Belts The best prices for Automotive parts ...","rid":"DyDAk_FVOu4FCM","rmt":0,"rt":0,"ru":"http://www.autoinsidernews.com/showitems.asp?cat\u003dMiscellaneous\u0026detailcat\u003dFan+Belts\u0026previtem\u003dEcklerauto%5F44%2D18705%2D4\u0026nextitem\u003dEcklerauto_44-18717-1","s":"Ford Pickup Truck Fan Belt 8 Cylinder - 239 \u0026 256 V8 -","sc":1,"st":"Autoinsidernews","th":138,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQ9uNSE2hmq7RA39Q9dijaQjNR8SN2Hvjrb0BUOGmijHOCM4_0pCg","tw":366}

448 × 350 - classicindustries.com

{"id":"-94kXUjqrHQ6HM:","isu":"classicindustries.com","itg":0,"ity":"jpg","oh":350,"ou":"http://www.autopartsdb.net/assets/images/ProductImg/Y/YE9606.jpg","ow":448,"pt":"Chevrolet Truck Parts | Engine | Acc. Drive Belts | Classic Industries","rid":"sDL4Lb0n5xYTLM","rmt":0,"rt":0,"ru":"http://www.classicindustries.com/shop/truck/parts/engine/acc--drive-belts/","s":"Serpentine Belt 6-Rib 96\"","sc":1,"st":"Classic Industries","th":198,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTweueOhaR2-dq8YW0W5wtxiqkKtiAhhvz6-GzoMh0LsC1HkFUVhg","tw":254}

283 × 300 - fixya.com

{"id":"8vasHpv-VziTLM:","isu":"fixya.com","itg":0,"ity":"gif","oh":300,"ou":"http://i.fixya.net/uploads/images/360dreamworx_55.gif","ow":283,"pt":"Serpentine belt diagrams jeep wrangler 2.5 - Fixya","rid":"lYWl0JrFu8oQWM","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t12895864-serpentine_belt_diagrams_jeep_wrangler","s":"360dreamworx_55.gif","sc":1,"st":"Fixya","th":231,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcT_nmHMmyk4rzhU273uteJzA1wFj1vdOIdzUT9-eWvL64IEpN1F","tw":218}

210 × 225 - ebay.com

{"cb":15,"cl":3,"cr":3,"ct":15,"id":"O7JK50HQB4Q2AM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/e-YAAOSwnHZYfU3j/s-l225.jpg","ow":210,"pt":"Vintage Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Chevrolet ...","rid":"BBw4t3g2QLsFJM","rmt":0,"rt":0,"ru":"https://www.ebay.com/sch/Belts-Pulleys-Brackets/140681/i.html?MMake\u003dChevrolet\u0026MModel\u003dTruck\u0026_pgn\u003d3\u0026_skc\u003d100","s":"1953-54 Chevy Truck Fan Belt - 3/8\" Wide Pulley","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSoUnIn_hGCSdHUsAAw3bFVKQrPsW0NmePCb0j6LHVabQ270o-yRQ","tw":210}

225 × 225 - ebay.com.au

{"id":"q1HguVY89xHrxM:","isu":"ebay.com.au","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/ztsAAOSwyrFZOgs0/s-l225.jpg","ow":225,"pt":"Gates Car and Truck Belts, Pulleys and Brackets | eBay","rid":"XAzIv_9j5gqM2M","rmt":0,"rt":0,"ru":"https://www.ebay.com.au/sch/Gates-Car-and-Truck-Belts-Pulleys-and-Brackets/38656/bn_2200239/i.html?_fsrp\u003d1","s":"Gates Fan Drive Belt ZD30 3.0L Diesel Engine fit Nissan Patrol GU Y61 Navara D22","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTYLL89WkeCLP-zrVxWtAgFkYZu9b-f4ymB9wT1hUc1FsWqxVyd6g","tw":225}

228 × 228 - japspareparts.com.au

{"cl":3,"cr":3,"id":"648fpLzJRucPBM:","isu":"japspareparts.com.au","itg":1,"ity":"jpg","oh":228,"ou":"https://www.japspareparts.com.au/image/cache/catalog/feed_2/46327-1A1733-228x228.jpg","ow":228,"pt":"HINO TRUCK","rid":"2-KZ8MsNmq4SsM","rmt":0,"rt":0,"ru":"http://www.japspareparts.com.au/hino-truck?sort\u003dp.model\u0026order\u003dASC\u0026limit\u003d15\u0026page\u003d645","s":"HINO TRUCK FL8J 2427 2008-11 EURO 4 FAN BELT 3371A1","sc":1,"th":182,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRij0TZPWpMpj31dcmjOd7r67iNKcgvmaNwUp0GrGminJUhW_kT","tw":182}

300 × 298 - ebay.com

{"cl":6,"cr":3,"id":"JLyjnLZ4x8_3lM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":298,"ou":"http://i.ebayimg.com/00/s/Mjk4WDMwMA\u003d\u003d/z/HVAAAOSwv0tVVLhW/$_1.JPG?set_id\u003d2","ow":300,"pt":"Similarities and Differences of Fan, Alternator \u0026 Serpentine Belt ...","rid":"w6pvrsTDXV80mM","rmt":0,"rt":0,"ru":"http://www.ebay.com/gds/Similarities-and-Differences-of-Fan-Alternator-Serpentine-Belt-/10000000205254474/g.html","s":"The term \"fan belt\" is still incorrectly used as a blanket expression to describe","sc":1,"st":"eBay","th":224,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTbess4P5ztG_R-D6FLTGcTgbY93Z7hQsKjO11LHLoHGK7WIy3A","tw":225}

500 × 500 - iknowparts.com.au

{"cb":15,"ct":15,"id":"o5-9gL_GC-yrNM:","isu":"iknowparts.com.au","itg":0,"ity":"jpg","oh":500,"ou":"https://www.iknowparts.com.au/images/ProductImages/500/2A1709.jpg","ow":500,"pt":"2A1709 - FAN BELT - Japanese Truck Replacement Parts for Isuzu ...","rid":"9SasC8Dd2gJC8M","rmt":0,"rt":0,"ru":"https://www.iknowparts.com.au/daihatsu-delta/v116-v118-v119-9-84-on/cooling-system/fan-belt-v11-and-air-con-fvz","s":"FAN BELT","sc":1,"st":"I Know Parts","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRcyO40aUy_apYKLy65ye_m_Q9WPeEeD-kf-_Sanvs4QJQPrusG","tw":225}

225 × 168 - ebay.com

{"cb":3,"cl":6,"cr":12,"ct":6,"id":"L86XP9P6wc-rxM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":168,"ou":"https://i.ebayimg.com/thumbs/images/g/Aa8AAOSwyQtV26Tm/s-l225.jpg","ow":225,"pt":"Belts, Pulleys, \u0026 Brackets for Dodge | eBay","rid":"bkjoj0sRmAdU0M","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Belts-Pulleys-Brackets-for-Dodge/38656/bn_1362991","s":"Dodge Commins Serpentine Belt 3095880","sc":1,"st":"eBay","th":134,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRMsWGXr8LvsM9u7qagcA-qCDA8FRjdw65pVrJQPwmZIl08qnap-w","tw":180}

700 × 500 - isuzureplacementparts.com

{"id":"zxgC-mW1ANCphM:","isu":"isuzureplacementparts.com","itg":0,"ity":"jpg","oh":500,"ou":"http://www.isuzureplacementparts.com/photo/pl3832733-8_97180199_1_isuzu_npr_parts_npr66_4hf1_4hk1_cooling_fan_belt_8971801991.jpg","ow":700,"pt":"8-97180199-1 Isuzu NPR Parts NPR66 4HF1 4HK1 Cooling Fan Belt ...","rid":"H3nd6m0btVkb0M","rmt":0,"rt":0,"ru":"http://www.isuzureplacementparts.com/sale-3018933-8-97180199-1-isuzu-npr-parts-npr66-4hf1-4hk1-cooling-fan-belt-8971801991.html","s":"8-97180199-1 Isuzu NPR Parts NPR66 4HF1 4HK1 Cooling Fan Belt 8971801991","sc":1,"st":"Isuzu Replacement Parts","th":190,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSLYilrVqXQqXKHY7h6u5F2uj7Y_oXaMQLy3EKa9BHKYB7m3J0b","tw":266}

300 × 300 - truckbusters.co.za

{"cb":21,"cl":21,"cr":21,"ct":21,"id":"ijKYjP3N6sEEsM:","isu":"truckbusters.co.za","itg":1,"ity":"jpg","oh":300,"ou":"http://www.truckbusters.co.za/wp-content/uploads/2011/05/2240-thickbox_default-alternator-belt-for-daf-cf85-300x300.jpg","ow":300,"pt":"Fan Belt Ribbed \u2013 13A1025C | Truck Busters","rid":"Z9rOZBkp4VhQzM","rmt":0,"rt":0,"ru":"http://www.truckbusters.co.za/product/fan-belt-ribbed-13a1025c/","s":"Alternator Belt For DAF CF85","sc":1,"st":"Truck Busters","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQ--D-vyN2AX4BZSq_PFCGagmftOZE54d9tZlH8UB2rEo7L4EDvRg","tw":225}

300 × 214 - isuzureplacementparts.sell.everychina.com

{"id":"FL-cH8W4Ob91pM:","isu":"isuzureplacementparts.sell.everychina.com","itg":0,"ity":"jpg","oh":214,"ou":"http://img2.everychina.com/img/8b/b3/c99dfbc4f248da77e675dc01bba7-300x300c0-4fad/8_97180199_1_isuzu_npr_parts_npr66_4hf1_4hk1_cooling_fan_belt_8971801991.jpg","ow":300,"pt":"8-97180199-1 Isuzu NPR Parts NPR66 4HF1 4HK1 Cooling Fan Belt ...","rid":"b4xy8bqvBE2inM","rmt":0,"rt":0,"ru":"http://isuzureplacementparts.sell.everychina.com/p-101688868-8-97180199-1-isuzu-npr-parts-npr66-4hf1-4hk1-cooling-fan-belt-8971801991.html","s":"8-97180199-1 Isuzu NPR Parts NPR66 4HF1 4HK1 Cooling Fan Belt 8971801991","sc":1,"st":"Bosket Industrial Limited - EveryChina","th":171,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTnOweeYQU7F-1b3g2oPEjMSrMfdYpQMjCA6dQW8iOz0HML8pwHxA","tw":240}

120 × 120 - jble.en.alibaba.com

{"id":"VwD6pfbJ5XG_HM:","isu":"jble.en.alibaba.com","itg":0,"ity":"jpg","oh":120,"ou":"https://sc01.alicdn.com/kf/HTB1lF0GHFXXXXc4XVXXq6xXFXXXA/fan-belt-spare-parts-for-weifang-495.jpg_120x120.jpg","ow":120,"pt":"Qingzhou Jiabaile International Trade Co., Ltd. - diesel engine ...","rid":"4qsym4uZtLzuFM","rmt":0,"rt":0,"ru":"https://jble.en.alibaba.com/","s":"fan belt / spare parts for weifang 495 diesel engine for light truck /machine/","sc":1,"st":"Alibaba","th":120,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcT0pcdXOTxYheHS-p2bIIxcxNDi52TDjRvEtsMHA9zdrvox-f_lZg","tw":120}

294 × 300 - fixya.com

{"id":"I4OwHP4W92eb7M:","isu":"fixya.com","itg":0,"ity":"jpg","oh":300,"ou":"http://i.fixya.net/uploads/images/ba0e71a.jpg","ow":294,"pt":"Belt routing 1995 none a/c 3.9 v8 land rover - Fixya","rid":"rK67hP_RT62mVM","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t13587108-belt_routing_1995_none_c_3_9_v8_land","s":"Gen \u003d Alternator G \u003d Guide pulley. T \u003d Tensioner pulley. AC \u003d Air Conditioning PAS \u003d Power Assisted Steering","sc":1,"st":"Fixya","th":227,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRyQes5SW-lfFAnag-yFyckeV_-RVueA34udP_CMHieYnpXSFLPig","tw":222}

417 × 300 - fixya.com

{"id":"Sr6eO9V18F3wrM:","isu":"fixya.com","itg":0,"ity":"jpg","oh":300,"ou":"http://i.fixya.net/uploads/images/0a3cd9e.jpg","ow":417,"pt":"SOLVED: I need a diagram to replace the alternator belt - Fixya","rid":"jhOTqdjJvMJ4sM","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t10178349-need_diagram_replace_alternator_belt","s":"Gen \u003d Alternator T \u003d Tensioner AC \u003d Air Conditioning PAS \u003d Power Assisted Steering WP \u003d Water Pump","sc":1,"st":"Fixya","th":190,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQIqqZ0DYmtmvgnhTCS8LIvvUu0imM5tRAtcLD4p1E975C6iZTR","tw":265}

500 × 500 - iknowparts.com.au

{"cb":21,"ct":21,"id":"bGVO7B_6fRZBZM:","isu":"iknowparts.com.au","itg":1,"ity":"jpg","oh":500,"ou":"https://www.iknowparts.com.au/images/ProductImages/500/4A1706.jpg","ow":500,"pt":"4A1706 - FAN BELT - Japanese Truck Replacement Parts for Isuzu ...","rid":"cDZ1ak6e8wa5xM","rmt":0,"rt":0,"ru":"https://www.iknowparts.com.au/toyota-dyna-and-coaster-bus/wu90-1984-88/cooling-system/fan-belt-single-mk185-lk185-cpc15","s":"FAN BELT","sc":1,"st":"I Know Parts","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRpNK5mP8KgKI1tu_PQsHNStLT8Ca6YHHFcXovIyZzOG_m32sTVSQ","tw":225}

201 × 225 - ebay.com

{"cl":9,"id":"9fNNJ9F-IdlJcM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/lqMAAOSwSv1Xl7Sh/s-l225.jpg","ow":201,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Ford Ka | eBay","rid":"4K6bSgapMWZNKM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Car-Truck-Engine-Belts-Pulleys-Brackets-for-Ford-Ka/38656/bn_19535637","s":"1573 SERPENTINE BELT 6PK2245 POLY-V FORD FIESTA KA 1.6L V-RIBBED BELT","sc":1,"st":"eBay","th":180,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSw9esqGX4Fpq1IyUikrZ4Qn06YMuBpuzoTjcfm2CnL3WyTIxcH9A","tw":160}

300 × 300 - truckbusters.co.za

{"cb":6,"cl":9,"cr":6,"ct":3,"id":"oPqMPXDuPGVhTM:","isu":"truckbusters.co.za","itg":1,"ity":"jpg","oh":300,"ou":"http://www.truckbusters.co.za/wp-content/uploads/2012/11/3114-fan-belt-ribbed-for-scania.jpg","ow":300,"pt":"Fan Belt Ribbed For Scania | Truck Busters","rid":"Ds6iKBjajYw4sM","rmt":0,"rt":0,"ru":"http://www.truckbusters.co.za/product/fan-belt-ribbed-for-scania-2/","s":"Fan Belt Ribbed For Scania ...","sc":1,"st":"Truck Busters","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQ01uJ2XyImJTNrS4_83Ggt1pGj_A_D6bmpD4UYtQrTQDnVTu3GZw","tw":225}

300 × 300 - darmamotor.web.indotrading.com

{"id":"xYYFFfHJdX9FJM:","isu":"darmamotor.web.indotrading.com","itg":0,"ity":"jpg","oh":300,"ou":"https://image1.indotrading.com/productimages/co1909/p230120/w300-h300/5a53ea3b-2ccf-41ca-9f72-cfdd8fb15bd4w.jpg","ow":300,"pt":"Jual Produk Spare Part Mitsubishi dari Darma Motor","rid":"7L5rduPgQxsmMM","rmt":0,"rt":0,"ru":"http://darmamotor.web.indotrading.com/sparepartmitsubishi-3946","s":"Fan Belt Escape 2.3 L Ford (Tali Kipas Escape)","sc":1,"st":"Darma Motor - Indotrading.com","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcS7WQhQEKJW8ulqY8AOvH_j2bLBp2vQwzSdTwX16iMqL6i3KLxSfg","tw":225}

222 × 225 - ebay.com

{"id":"DnDMKhp6q-ZyxM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/vxkAAOSwImRYSm5r/s-l225.jpg","ow":222,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for BMW 750Li ...","rid":"hS3GxLK63XctJM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Car-Truck-Engine-Belts-Pulleys-Brackets-for-BMW-750Li-Genuine-OEM/38656/bn_32409367","s":"BMW 11287631817 GENUINE OEM SERPENTINE BELT (Fits: BMW 750Li)","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTnA-332Omg_mRvJEEa8ERUlW2Dy0lmGpesuTj1_PXwTUwEmA5jHQ","tw":222}

500 × 598 - fixya.com

{"id":"EDUcmigQ8BvVpM:","isu":"fixya.com","itg":0,"ity":"gif","oh":598,"ou":"http://repairguide.autozone.com/znetrgs/repair_guide_content/en_us/images/0996b43f/80/20/8c/af/medium/0996b43f80208caf.gif","ow":500,"pt":"2004 Chevy Impala SS. Belt snapped off, still runs. - Fixya","rid":"W38vE2fpq3-5-M","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t15373877-2004_chevy_impala_ss_belt_snapped_off","s":"zjlimited_55.jpg","sc":1,"st":"Fixya","th":246,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcS-3U2AgWeQ9Jfpz9u6tykiLbYFFTdpZB5CsQVnqBs_fJFRplxNzQ","tw":205}

201 × 225 - ebay.com

{"cl":9,"id":"9fNNJ9F-IdlJcM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/lqMAAOSwSv1Xl7Sh/s-l225.jpg","ow":201,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Ford Ka | eBay","rid":"4K6bSgapMWZNKM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Car-Truck-Engine-Belts-Pulleys-Brackets-for-Ford-Ka/38656/bn_19535637","s":"1573 SERPENTINE BELT 6PK2245 POLY-V FORD FIESTA KA 1.6L V-RIBBED BELT","sc":1,"st":"eBay","th":180,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSw9esqGX4Fpq1IyUikrZ4Qn06YMuBpuzoTjcfm2CnL3WyTIxcH9A","tw":160}

300 × 300 - truckbusters.co.za

{"cb":6,"cl":9,"cr":6,"ct":3,"id":"oPqMPXDuPGVhTM:","isu":"truckbusters.co.za","itg":1,"ity":"jpg","oh":300,"ou":"http://www.truckbusters.co.za/wp-content/uploads/2012/11/3114-fan-belt-ribbed-for-scania.jpg","ow":300,"pt":"Fan Belt Ribbed For Scania | Truck Busters","rid":"Ds6iKBjajYw4sM","rmt":0,"rt":0,"ru":"http://www.truckbusters.co.za/product/fan-belt-ribbed-for-scania-2/","s":"Fan Belt Ribbed For Scania ...","sc":1,"st":"Truck Busters","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQ01uJ2XyImJTNrS4_83Ggt1pGj_A_D6bmpD4UYtQrTQDnVTu3GZw","tw":225}

300 × 300 - darmamotor.web.indotrading.com

{"id":"xYYFFfHJdX9FJM:","isu":"darmamotor.web.indotrading.com","itg":0,"ity":"jpg","oh":300,"ou":"https://image1.indotrading.com/productimages/co1909/p230120/w300-h300/5a53ea3b-2ccf-41ca-9f72-cfdd8fb15bd4w.jpg","ow":300,"pt":"Jual Produk Spare Part Mitsubishi dari Darma Motor","rid":"7L5rduPgQxsmMM","rmt":0,"rt":0,"ru":"http://darmamotor.web.indotrading.com/sparepartmitsubishi-3946","s":"Fan Belt Escape 2.3 L Ford (Tali Kipas Escape)","sc":1,"st":"Darma Motor - Indotrading.com","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcS7WQhQEKJW8ulqY8AOvH_j2bLBp2vQwzSdTwX16iMqL6i3KLxSfg","tw":225}

394 × 300 - fixya.com

{"cb":6,"ct":6,"id":"_Vi49cuHZ8vo4M:","isu":"fixya.com","itg":0,"ity":"gif","oh":300,"ou":"http://i.fixya.net/uploads/images/9f30f86.gif","ow":394,"pt":"Belt routing desing 1989 mercedes 300te - Fixya","rid":"L3NovjTlrHTeXM","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t20512916-belt_routing_desing_1989_mercedes_300te","s":"I have installed a new belt on a 88 mercedes 300TE the other day, I cannot get the belt to stay tight after starting the engine. Is the tensioner at fault?","sc":1,"st":"Fixya","th":196,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSEwKly0s8PaGsujVMf9UHAf6LmW1gMqSqARdDFt79N_Q-th9PE","tw":257}

550 × 550 - speedwaymotors.com

{"cb":21,"cl":3,"cr":6,"ct":18,"id":"Y55op7OgwsF7WM:","isu":"speedwaymotors.com","itg":0,"ity":"jpg","oh":550,"ou":"http://static.speedwaymotors.com/RS/SR/Product/38/46660325_L_18f1b50b.jpg","ow":550,"pt":"KRC Serpenetine Accessory Drive Belt, 6 Rib, 33 Inch Long","rid":"8kT04yzdWeJymM","rmt":0,"rt":0,"ru":"http://www.speedwaymotors.com/KRC-Serpenetine-Accessory-Drive-Belt-6-Rib-33-Inch-Long,69908.html","s":"KRC Serpentine Accessory Drive Belt, 6 Rib, 32-1/2 Inch","sc":1,"st":"Speedway Motors","th":224,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSiHFiakbW1QEO3kxQAQmcanH-ftn0Lgjd8L-8CCDC_TUVluFfj","tw":224}

355 × 346 - maliburacing.com

{"cb":9,"cl":3,"cr":3,"ct":3,"id":"n2LjibOacUW_NM:","isu":"maliburacing.com","itg":0,"ity":"jpg","oh":346,"ou":"http://i302.photobucket.com/albums/nn117/Skinner12082/Malibu%20build%2009/pulleys.jpg","ow":355,"pt":"View topic - Serpentine belt swap","rid":"VgRVq1tlxY2cRM","rmt":0,"rt":0,"ru":"http://maliburacing.com/forum/viewtopic.php?f\u003d4\u0026t\u003d109220\u0026hilit\u003dserpentine","s":"Alternator: My setup is from a \u002794 which uses the newer style (internal fan) alternator, I\u0027m not 100% sure if this bracket interchanges with the slightly ...","sc":1,"st":"Malibu Racing","th":222,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQtFjhMpeY7q79-n5pAsgqDQR0HbZ2e-5PpnuBnAIhHIQhjTzPQ","tw":227}

400 × 400 - truckbusters.co.za

{"id":"Pn7VZQeCOCHVuM:","isu":"truckbusters.co.za","itg":1,"ity":"jpg","oh":400,"ou":"http://www.truckbusters.co.za/wp-content/uploads/2014/11/3561-thickbox_default-fan-belt-13a1285.jpg","ow":400,"pt":"Dayco Alternator Belt \u2013 13A1285 | Truck Busters","rid":"lRFUE5LA5JC2UM","rmt":0,"rt":0,"ru":"http://www.truckbusters.co.za/product/fan-belt-13a1285/","s":"Fan Belt - 13A1285 ...","sc":1,"st":"Truck Busters","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRU8QCPe75yTOkJ5mxPBZDP6GNZoHe6wQcSX-cwjdHkk_0LYg-Qfg","tw":225}

500 × 500 - iknowparts.com.au

{"cb":9,"cr":3,"ct":6,"id":"ByjJSjgoLO7bpM:","isu":"iknowparts.com.au","itg":1,"ity":"jpg","oh":500,"ou":"https://www.iknowparts.com.au/images/ProductImages/500/3A1706.jpg","ow":500,"pt":"3A1706 - FAN BELT - Japanese Truck Replacement Parts for Isuzu ...","rid":"F2KFyB6v0jtfPM","rmt":0,"rt":0,"ru":"https://www.iknowparts.com.au/hino-bus/bg300-bus/cooling-system/fan-belt-single-fk102-compress-fv315-alternator-fv313","s":"FAN BELT","sc":1,"st":"I Know Parts","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSDzfyJXc9UyIeDX50EtjN8LCXn9MlhyZT3Gbem-aMo-n2s6gYQmw","tw":225}

500 × 500 - alibaba.com

{"cb":21,"ct":21,"id":"Kr9fmOMSpC8zGM:","isu":"alibaba.com","itg":0,"ity":"jpg","oh":500,"ou":"https://sc01.alicdn.com/kf/HTB1uVFHLFXXXXc4XFXXq6xXFXXXE/Forklift-Truck-Spare-Parts-Machine-Fan-Belt.jpg","ow":500,"pt":"Forklift Parts Fan Belt, Forklift Parts Fan Belt Suppliers and ...","rid":"6zawDJEvqfFi5M","rmt":0,"rt":0,"ru":"https://www.alibaba.com/showroom/forklift-parts-fan-belt.html","s":"Forklift Parts Fan Belt, Forklift Parts Fan Belt Suppliers and Manufacturers at Alibaba.com","sc":1,"st":"Alibaba","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSWRKAkecY-CNSRrZhta5VLpGHn7bSY9AIOtPyv_MwrmpfRASS_","tw":225}

225 × 186 - ebay.com

{"id":"k-Y2VD-7kWgKYM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":186,"ou":"https://i.ebayimg.com/thumbs/images/g/AeIAAOSwjDZYk18V/s-l225.jpg","ow":225,"pt":"Bando Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Mitsubishi ...","rid":"xz3NH9mJsPtiUM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Bando-Car-Truck-Engine-Belts-Pulleys-Brackets-for-Mitsubishi-Montero/38656/bn_19520045","s":"MITSUBISHI MONTERO SPORT 3.0L V6 1997-2003 DRIVE BELTS A/C ALTERNATOR STEERING (Fits: Mitsubishi Montero Sport)","sc":1,"st":"eBay","th":186,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQgJ_Se4U0fKwswdSmA3kgFSfQ3oBtr-cBOQTFDyvaB4VM8lXc8wA","tw":225}

993 × 685 - jtoutfitters.com

{"id":"ArEVacv-eSakAM:","isu":"jtoutfitters.com","itg":0,"ity":"jpg","oh":685,"ou":"http://www.jtoutfitters.com/images/6PK2455.jpg","ow":993,"pt":"Serpentine Belt Toyota Land Cruiser Sequoia Tundra V8 - JTOutfitters","rid":"I4wIHZvNY3jSJM","rmt":0,"rt":0,"ru":"http://www.jtoutfitters.com/serpentine-belt-toyota-land-cruiser-sequoia-tundra-p-10586.html","s":"Click to enlarge","sc":1,"st":"JT Outfitters","th":186,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSsjoKSemwl_wdlrAN36AZPt7yx2VGGJmZYikCXekQ6HBiLSVtJ","tw":270}

228 × 228 - japspareparts.com.au

{"id":"gMEwweQlU5YGsM:","isu":"japspareparts.com.au","itg":1,"ity":"jpg","oh":228,"ou":"http://www.japspareparts.com.au/image/cache/catalog/feed_2/45530-1A1702-228x228.jpg","ow":228,"pt":"TRUCK FD3H HAWK 1991-96 FAN BELT 2071A1","rid":"HW5Sa5R-3V8HJM","rmt":0,"rt":0,"ru":"http://www.japspareparts.com.au/hino-truck-fd3h-hawk-1991-96-fan-belt-2071a1.html?tag\u003dFD3H\u0026sort\u003dp.price\u0026order\u003dASC\u0026page\u003d9\u0026limit\u003d15","s":"HINO TRUCK FD3H HAWK 1991-96 FAN BELT 2071A1","sc":1,"th":182,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSCjSn2MNGoJAzWQuzX_aMFHv8_chIsUKuaPgFuTsPnD69vvyQa","tw":182}

200 × 150 - alibaba.com

{"cb":21,"cl":3,"cr":3,"ct":21,"id":"lEk2tyTzqR4uEM:","isu":"alibaba.com","itg":0,"ity":"jpg","oh":150,"ou":"https://sc01.alicdn.com/kf/HTB1scFZLpXXXXcpXpXXq6xXFXXX1/Mercedes-Benz-Truck-Fan-Belt.jpg_220x220.jpg","ow":200,"pt":"Mercedes Benz Belt, Mercedes Benz Belt Suppliers and Manufacturers ...","rid":"dJP3iDgMI7WZoM","rmt":0,"rt":0,"ru":"http://www.alibaba.com/promotion/promotion_cn_mercedes-benz-belt-promotion-list.html","s":"Mercedes Benz Belt, Mercedes Benz Belt Suppliers and Manufacturers at Alibaba.com","sc":1,"st":"Alibaba","th":150,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcS7h-xYTh0X83gdYF_MH7FyGm5Xm4QQ2q9Sfoq5TyMpSrggNASYqg","tw":200}

900 × 900 - bestvalueautoparts.com

{"id":"_t19vPvhQCg5qM:","isu":"bestvalueautoparts.com","itg":0,"ity":"jpg","oh":900,"ou":"http://images.wrenchead.com/smartpages/partinfo_resize/GAT/S6028.jpg","ow":900,"pt":"DODGE PICKUP RAM 2500 Belt Routing Diagram from Best Value Auto Parts","rid":"9IMbX3o3VivCwM","rmt":0,"rt":0,"ru":"http://www.bestvalueautoparts.com/Replacement_Parts/DODGE/PICKUP_RAM_2500/Illust_c_Belt_Routing.html","s":"1995 DODGE PICKUP RAM 2500 Belt Routing Diagram ...","sc":1,"st":"Best Value Auto Parts","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTbd6NWcMYhU6PfCU5I01JbD6fvpHqGigTA_y_Cb8Vs8rL061lG","tw":225}

500 × 500 - iknowparts.com.au

{"cb":21,"ct":21,"id":"1GSWrrLskm5jSM:","isu":"iknowparts.com.au","itg":1,"ity":"jpg","oh":500,"ou":"https://www.iknowparts.com.au/images/ProductImages/500/12A1704.jpg","ow":500,"pt":"12A1704 - FAN BELT - Japanese Truck Replacement Parts for Isuzu ...","rid":"QReEjSOuf3yYSM","rmt":0,"rt":0,"ru":"https://www.iknowparts.com.au/ford-trader/0409-8-95-2000/cooling-system/fan-belt-t4000-t4600-89-ftr34-frd34-fvd32-frr34","s":"FAN BELT","sc":1,"st":"I Know Parts","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRTNxk34jtum45HQLhuLCSsJY5cYvnM_r56Zx95q-tPZFZIjy53iw","tw":225}

600 × 173 - autoinsidernews.com

{"id":"aXWT-ySyfRqiJM:","isu":"autoinsidernews.com","itg":0,"ity":"jpg","oh":173,"ou":"http://www.macsautoparts.com/assets/macs/images/size/600x/sku/64-18159.jpg","ow":600,"pt":"Miscellaneous - Fan Belts The best prices for Automotive parts ...","rid":"FNmpGz9DpdcmVM","rmt":0,"rt":0,"ru":"http://www.autoinsidernews.com/showitems.asp?cat\u003dMiscellaneous\u0026detailcat\u003dFan+Belts\u0026previtem\u003dEcklerauto%5F48%2D18706%2D4\u0026nextitem\u003dEcklerauto_48-18710-14","s":"$14.99 More Details · Fan Belt - Wide Belt - Ford Flathead 239 V8 - With Gene","sc":1,"st":"Autoinsidernews","th":120,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSk42rlxV1z5WT0BRfSQOzGETbHGcrvangIgraza8-h8eNnIrCXuw","tw":419}

160 × 160 - macsautoparts.com

{"id":"JA4TexlEFoQ5tM:","isu":"macsautoparts.com","itg":0,"ity":"jpg","oh":160,"ou":"http://www.macsautoparts.com/assets/macs/images/size/160x160/sku/64-18159.jpg","ow":160,"pt":"1948-1979 V8 Ford Truck Water Pump Pulleys Water Pump Pulleys And ...","rid":"ryg1O337qZNPeM","rmt":0,"rt":0,"ru":"http://www.macsautoparts.com/ford_truck_late/cooling-system/water-pump-pulleys-and-hardware.html","s":"Ford Pickup Truck Reproduction Fan Belt - 239 \u0026 256 V8 - F1, F2 \u0026","sc":1,"st":"MACs Antique Auto Parts","th":128,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTU4_HJw8VmPSw0AgKaUDXICoCklihCLdan1RQDEZQGbOz7gdjEkA","tw":128}

600 × 139 - autoinsidernews.com

{"cb":9,"cl":6,"cr":9,"ct":6,"id":"I83TL37ykmgdeM:","isu":"autoinsidernews.com","itg":0,"ity":"jpg","oh":139,"ou":"http://www.macsautoparts.com/assets/macs/images/size/600x/sku/64-15665.jpg","ow":600,"pt":"Miscellaneous - Fan Belts The best prices for Automotive parts ...","rid":"DyDAk_FVOu4FCM","rmt":0,"rt":0,"ru":"http://www.autoinsidernews.com/showitems.asp?cat\u003dMiscellaneous\u0026detailcat\u003dFan+Belts\u0026previtem\u003dEcklerauto%5F44%2D18705%2D4\u0026nextitem\u003dEcklerauto_44-18717-1","s":"$15.95 More Details · Fan Belt - 55 - With Ford Script - Ford Flathead V8 Exc","sc":1,"st":"Autoinsidernews","th":108,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQzF8TJkkKJGstNv9pGEwDEUqlMczDhMBLIeMWwKC9wRUid0C6n7Q","tw":467}

800 × 800 - dieselenginebelt.com

{"cb":3,"cl":9,"cr":3,"ct":21,"id":"B6OHUPJmKhJZhM:","isu":"dieselenginebelt.com","itg":0,"ity":"jpg","oh":800,"ou":"http://img.china.alibaba.com/img/ibank/2010/906/163/161361609_102177663.jpg","ow":800,"pt":"Railway belt","rid":"7jPtv7slUvzrVM","rmt":0,"rt":0,"ru":"http://www.dieselenginebelt.com/belt/Railway%20belt/","s":"Truck v belt 3040384 Fan belt for NT855 Cummins engine Truck","sc":1,"st":"Cummins belt,engine belt,diesel belt","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSIvdmGIOg8Ol94lfxZHH5Um24EJvo8fdhQb3cipeWTkeH9YyXD2A","tw":225}

500 × 500 - sparecab.com

{"id":"JcGCSpsWhkm71M:","isu":"sparecab.com","itg":0,"ity":"jpg","oh":500,"ou":"http://sparecab.com/eshop/upload/image/cache/catalog/79-500x500.jpg","ow":500,"pt":"FAN BELTS AND TIMING BELTS","rid":"MwIT3JS7KY2c6M","rmt":0,"rt":0,"ru":"http://sparecab.com/eshop/upload/index.php?route\u003dproduct/category\u0026path\u003d9\u0026page\u003d32","s":"FAN BELTS AVX 10 X 665 CONTINENTAL CONTITECH TATA NANO","sc":1,"st":"spare cab","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRYGkkmg_F11MeYHbQnVN8LJ0hftPx8dbtzfDE-2KpVy0h2rW0gsw","tw":225}

263 × 268 - scootercatalog.com

{"id":"FGvxrf2V9JrtyM:","isu":"scootercatalog.com","itg":0,"ity":"jpg","oh":268,"ou":"https://sep.yimg.com/ay/scootercatalog/scooter-drive-belt-size-670-5m-20-18.jpg","ow":263,"pt":"Scooter Drive belt, HTD-670-5M-20 -Same as Bladez 30921-Long belt","rid":"wdUVBwvG5eM79M","rmt":0,"rt":0,"ru":"http://www.scootercatalog.com/belt-670-5m-20.html","s":"","sc":1,"st":"Scooter Catalog","th":214,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSnFey70jJl8YhOQ-NUYfYTaI9bTOuk97mQ4tQpELsgsw1JkFreAg","tw":210}

278 × 300 - fixya.com

{"cb":12,"cl":6,"cr":6,"ct":12,"id":"BhvQgS_ZkSZpZM:","isu":"fixya.com","itg":0,"ity":"gif","oh":300,"ou":"http://i.fixya.net/uploads/images/d2d4f00.gif","ow":278,"pt":"Belt diagram 1994 mustang 5.0 - Fixya","rid":"vDwIdqCP2zrO_M","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t11802550-belt_diagram_1994_mustang_5_0","s":"Hope this helps.","sc":1,"st":"Fixya","th":233,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRz1WSDTOp6REvlNLj3dDXv0sEZnRLzrmtQbdaf_aSrxRSymdmR","tw":216}

225 × 204 - ebay.com

{"cb":15,"cl":9,"cr":12,"ct":9,"id":"HJPFsa6dqizckM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":204,"ou":"https://i.ebayimg.com/thumbs/images/g/GM8AAOSw~gRVubQt/s-l225.jpg","ow":225,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for BMW X1 | eBay","rid":"4Bg5cltNjUwOaM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Car-Truck-Engine-Belts-Pulleys-Brackets-for-BMW-X1/38656/bn_19520873","s":"BMW E39 E46 E53 X5 E60 Serpentine Belt + A/C belt OEM","sc":1,"st":"eBay","th":204,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRxDnXvfH5pyBEtAksGZJ48HlzQxeobk3sOmVavGQPUX82dkHFKVg","tw":225}

350 × 302 - alibaba.com

{"cb":3,"id":"5n7wxNTr8K0z_M:","isu":"alibaba.com","itg":0,"ity":"png","oh":302,"ou":"https://sc01.alicdn.com/kf/HTB1E_4HHFXXXXbZXXXX760XFXXX2/AUTO-FAN-BELT-90916-02640-FOR-TOYOTA.png_350x350.png","ow":350,"pt":"Auto Fan Belt 90916-02640 For Toyota Corolla 90916-02660 - Buy Fan ...","rid":"srHV9NN8Qnj3QM","rmt":0,"rt":0,"ru":"https://www.alibaba.com/product-detail/AUTO-FAN-BELT-90916-02640-FOR_60216966207.html","s":"AUTO FAN BELT 90916-02640 FOR TOYOTA corolla 90916-02660","sc":1,"st":"Alibaba","th":209,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTyMw7YCw9-QpmNIUAnjThRhjnMGbAms-ebs35C_eay_FGHTobp","tw":242}

225 × 225 - ebay.com

{"cb":6,"cl":21,"cr":21,"ct":9,"id":"HminuwT2OlmGfM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/omwAAOSwblZZMmnE/s-l225.jpg","ow":225,"pt":"Jaguar Car and Truck Engine Belts, Pulleys and Brackets | eBay","rid":"hRFFRZEMZp02xM","rmt":0,"rt":0,"ru":"http://www.ebay.com/sch/Jaguar-Car-and-Truck-Engine-Belts-Pulleys-and-Brackets/38656/bn_575031/i.html?_fsrp\u003d1\u0026_pgn\u003d3","s":"Jaguar EAC6335 Accessory Drive Belt/V-Belt/Fan Belt","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTEtffzs54jugxdR1pLL2_u0kI3VyOCWeYdX2mQzKLyh2WzLXNk","tw":225}

423 × 293 - fixya.com

{"cl":18,"cr":18,"ct":3,"id":"1Z6jRN7sik0jeM:","isu":"fixya.com","itg":0,"ity":"jpg","oh":293,"ou":"http://i.fixya.net/uploads/images/2_15_2012_2_17_25_pm.jpg","ow":423,"pt":"SOLVED: 1985 ford ranger with 2.3 liter-need diagram for - Fixya","rid":"ey8QqhXmktXttM","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t11693815-1985_ford_ranger_2_3_liter_need_diagram","s":"1985 ford ranger with 2.3 liter-need diagram for s - 2_15_2012_2_17_25_pm.jpg","sc":1,"st":"Fixya","th":187,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSZiNcrH-mCZtjzj7qLFq9sEulFQiaf1D7DnWa47NBh_Lc2nUzB2g","tw":270}

403 × 300 - fixya.com

{"id":"3xVjPyM-UCfOMM:","isu":"fixya.com","itg":0,"ity":"jpg","oh":300,"ou":"http://i.fixya.net/uploads/images/564eb29.jpg","ow":403,"pt":"SOLVED: 1999 Audi A4 1.9 tdi aux drive belt diagram - Fixya","rid":"TaFzcCSEzxDURM","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t7855399-1999_audi_a4_1_9_tdi_aux_drive_belt","s":"Gen \u003d Alternator G \u003d Guide pulley. T \u003d Tensioner pulley. AC \u003d Air Conditioning PAS \u003d Power Assisted Steering","sc":1,"st":"Fixya","th":194,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcR1dx6EAp8IhTpI74RyA10JBDpTZGKPhWJYJs2X2AVB52U_wxqN","tw":260}

225 × 208 - ebay.com

{"cr":3,"ct":3,"id":"FlJFM6oRUgmqeM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":208,"ou":"https://i.ebayimg.com/thumbs/images/g/g84AAOSwJcZWgTmv/s-l225.jpg","ow":225,"pt":"Bando Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Toyota RAV4 ...","rid":"9W44UG6aSx_puM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Bando-Car-Truck-Engine-Belts-Pulleys-Brackets-for-Toyota-RAV4/38656/bn_19543591","s":"New Bando Drive Belt for Toyota Camry Solara 2008 2006 2004 2003 2002 RAV4 2005 (Fits: Toyota RAV4)","sc":1,"st":"eBay","th":166,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQpkQKBCZlruylr2QdKXIzaMtyyTeiBgjbNXyRT6TQJbJnEgAkz_A","tw":180}

900 × 900 - evdiesels.en.gasgoo.com

{"id":"FD-ytfroh5ja-M:","isu":"evdiesels.en.gasgoo.com","itg":0,"ity":"jpg","oh":900,"ou":"http://images.gasgoo.com/attachment/Approved/003/022/003022547.jpg","ow":900,"pt":"MITSUBISHI Fan Belt S3L S3L2 S4L2 V-Belt For Forklift, OEM Number ...","rid":"Ej-nZJG24C3FwM","rmt":0,"rt":0,"ru":"http://evdiesels.en.gasgoo.com/auto-products/2104004.html","s":"MITSUBISHI Fan Belt S3L S3L2 S4L2 V-Belt For Forklift","sc":1,"st":"Evictory Diesel Spare Parts Co., Limited","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcT56K-cmPx6QwGvZYVmnRj8ebL_UzqjGPMhlCbRrbN9bWMm0O_XyQ","tw":225}

259 × 253 - ebay.com

{"id":"EP1h3n29PAExnM:","isu":"ebay.com","itg":0,"ity":"gif","oh":253,"ou":"http://www.trademotion.com/media/images/oe/Collision/M/ME99130.gif","ow":259,"pt":"FORD BC2Z8620A GENUINE OEM SERPENTINE BELT | eBay","rid":"6ZmbLN94-qtWZM","rmt":0,"rt":0,"ru":"http://www.ebay.com/itm/FORD-BC2Z8620A-GENUINE-OEM-SERPENTINE-BELT-/301447835259","s":"FORD BC2Z8620A GENUINE OEM SERPENTINE BELT","sc":1,"st":"eBay","th":202,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTo-25QUyBKQ7J_RFE7Bj2Td81CRaZVQYGqwkZBBGS6FpM_HH0Q","tw":207}

103 × 225 - ebay.com

{"id":"6yYpnpKy4HKxeM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/4ScAAOSwo4pYl4t~/s-l225.jpg","ow":103,"pt":"Dayco Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Ford Crown ...","rid":"FMv_WONwfkJ3oM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Dayco-Car-Truck-Engine-Belts-Pulleys-Brackets-for-Ford-Crown-Victoria/38656/bn_19524933","s":"Serpentine Belt CROWN VICTORIA GRAND MARQUIS 1992 LINCOLN TOWN CAR 1991-1992 (Fits: Ford Crown Victoria)","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcR5kNviscNdAQe7NCdzh8ZHliVacNbVISK96izia_hgVR53zkLRSA","tw":103}

500 × 493 - autozone.com

{"id":"cl_ddP9oNqln6M:","isu":"autozone.com","itg":0,"ity":"gif","oh":493,"ou":"http://repairguide.autozone.com/znetrgs/repair_guide_content/en_us/images/0900c152/80/06/23/5e/medium/0900c1528006235e.gif","ow":500,"pt":"2006 Toyota Camry 2.4L FI DOHC 4cyl | Repair Guides | Engine ...","rid":"YjsrwllwBYMUCM","rmt":0,"rt":0,"ru":"http://www.autozone.com/repairguides/ISUZU-Amigo-Pick-ups-Rodeo-Trooper-1981-1996/ENGINE-MECHANICAL/Timing-Belt/_/P-0900c15280062357","s":"7: Timing belt installation sequence-2.3L and 2.6L engines","sc":1,"st":"AutoZone","th":223,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQ-NeOtCnYxonq9B9QFbziWxvabDPWIcb35avzep4W6qV4arYWb","tw":226}

225 × 169 - ebay.com

{"cb":3,"cl":3,"cr":3,"ct":21,"id":"CdHlbEFc5WpJiM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":169,"ou":"http://thumbs4.ebaystatic.com/d/l225/m/mbf05EA_wWq1RpMjZMtXB-w.jpg","ow":225,"pt":"Similarities and Differences of Fan, Alternator \u0026 Serpentine Belt ...","rid":"w6pvrsTDXV80mM","rmt":0,"rt":0,"ru":"http://www.ebay.com/gds/Similarities-and-Differences-of-Fan-Alternator-Serpentine-Belt-/10000000205254474/g.html","s":"Continental Alternator Drive Belt 675 53006 259 V-Belt/Fan Belt","sc":1,"st":"eBay","th":169,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRl7BHWx0o4Q98rh4Xazy1J2xvZIvAdPc3GBTlsDBmhRTSSCatQ","tw":225}

225 × 169 - ebay.com

{"cb":3,"cl":15,"cr":3,"ct":3,"id":"2qFZk9lZlRbOfM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":169,"ou":"https://i.ebayimg.com/thumbs/images/g/NF8AAOSwn-tZMyO-/s-l225.jpg","ow":225,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for BMW 3.0CS | eBay","rid":"IKwgSilkqF2A3M","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Car-Truck-Engine-Belts-Pulleys-Brackets-for-BMW-3-0CS/38656/bn_51155082","s":"Continental Accessory Drive Belt fits 1971-1974 BMW 3.0CS,3.0S Bavaria 2800 (Fits: BMW 3.0CS)","sc":1,"st":"eBay","th":169,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQ4lZI1UWjVJZmkx5Lpo_SipyCOwXiSxiF4Sp0gD7OawQavjOGO","tw":225}

400 × 400 - evdiesels.en.gasgoo.com

{"id":"AoSKJiQbhD4phM:","isu":"evdiesels.en.gasgoo.com","itg":0,"ity":"jpg","oh":400,"ou":"http://images.gasgoo.com/attachment/Approved/003/022/400_400/003022547.jpg","ow":400,"pt":"MITSUBISHI Fan Belt S3L S3L2 S4L2 V-Belt For Forklift, OEM Number ...","rid":"Ej-nZJG24C3FwM","rmt":0,"rt":0,"ru":"http://evdiesels.en.gasgoo.com/auto-products/2104004.html","s":"MITSUBISHI Fan Belt S3L S3L2 S4L2 V-Belt For Forklift","sc":1,"st":"Evictory Diesel Spare Parts Co., Limited","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSd64c6KfEDtYnduo7wF4PwfleyS1ABnqFqxHqH0lIDRX5_fekk","tw":225}

225 × 225 - ebay.com

{"id":"4dtQs1PKqxxIvM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/F-oAAMXQlgtStGg6/s-l225.jpg","ow":225,"pt":"Mopar Unspecified Length Car \u0026 Truck Engine Belts, Pulleys ...","rid":"ac8eBd70R0bveM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Mopar-Unspecified-Length-Car-Truck-Engine-Belts-Pulleys-Brackets/38656/bn_32409926","s":"NEW GENUINE OEM MOPAR 4593684AA SERPENTINE ENGINE FAN DRIVE BELT","sc":1,"st":"eBay","th":180,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSn_hbJBb45CAC3gdk6x9yfCaiBnBeV9eXQbpkoe9FHsFY7oH22","tw":180}

225 × 169 - ebay.com

{"ct":21,"id":"dLbOjPstKBJoBM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":169,"ou":"http://i.ebayimg.com/thumbs/images/g/PsAAAOSwnNBXVn1z/s-l225.jpg","ow":225,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Nissan Cube | eBay","rid":"k1eTfKJpxnBlMM","rmt":0,"rt":0,"ru":"https://www.ebay.com/sch/Belts-Pulleys-Brackets/38656/i.html?MMake\u003dNissan\u0026MModel\u003dCube\u0026_pgn\u003d3\u0026_skc\u003d100","s":"Mitsuboshi Serpentine Belt fits 1995-2010 Nissan Sentra Maxima Cube","sc":1,"st":"eBay","th":169,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQnS5pU6HrqCx_GIt6BMYSr_P6MMi_Zecpqkj0djXu8BeAlehf0","tw":225}

600 × 600 - alibaba.com

{"id":"GjDTxkDMvzw3BM:","isu":"alibaba.com","itg":0,"ity":"jpg","oh":600,"ou":"https://sc02.alicdn.com/kf/HTB1E_ilMVXXXXXGXFXXq6xXFXXXU/TFR-FAN-BELT-OE-8-97130560-D.jpg","ow":600,"pt":"Isuzu Fan Belt, Isuzu Fan Belt Suppliers and Manufacturers at ...","rid":"plH358y8xRlZEM","rmt":0,"rt":0,"ru":"https://www.alibaba.com/showroom/isuzu-fan-belt.html","s":"Isuzu Fan Belt, Isuzu Fan Belt Suppliers and Manufacturers at Alibaba.com","sc":1,"st":"Alibaba","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSLXANZYfbfu_FFAHdQEfUh8vdxcpDn09EybmBgmTqahJwvnt0dhA","tw":225}

225 × 150 - ebay.com

{"cl":9,"cr":9,"ct":6,"id":"G9eOaWjq4FQcAM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":150,"ou":"https://i.ebayimg.com/thumbs/images/g/YgwAAOSwfY9XQPLR/s-l225.jpg","ow":225,"pt":"Car \u0026 Truck Engines \u0026 Components for BMW 330Ci | eBay","rid":"v55CFECiHpOiuM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Car-Truck-Engines-Components-for-BMW-330Ci/33612/bn_23503547","s":"BMW 325 Ci/i/xi 330 Ci/i/xi 525i 530i X5 (2002-2006) Drive Belt Kit CONTITECH (Fits: BMW 330Ci)","sc":1,"st":"eBay","th":150,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRldZ4vrap-RW_JTVQwFxvphiNHswTws8jd3DZT8ls3Zq5KYNr3","tw":225}

366 × 300 - fixya.com

{"id":"FJUULA466ArniM:","isu":"fixya.com","itg":0,"ity":"gif","oh":300,"ou":"http://i.fixya.net/uploads/images/b98e301.gif","ow":366,"pt":"How to change serpentine belt on a 2007 honda civic? - Fixya","rid":"4vCoARpbcOohQM","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t5636394-change_serpentine_belt_2007_honda","s":"Accessory drive belt routing\u20141.8L engine","sc":1,"st":"Fixya","th":203,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTOpZBQ3V4FKEhAE2vr6RCmKJrREuq_l4i9AtlMnumj0SoOr2yOdw","tw":248}

500 × 500 - iknowparts.com.au

{"id":"TV9C0UVgNuV9CM:","isu":"iknowparts.com.au","itg":0,"ity":"jpg","oh":500,"ou":"https://www.iknowparts.com.au/images/ProductImages/500/4A1709.jpg","ow":500,"pt":"4A1709 - BELT AIR CONDITIONING - Japanese Truck Replacement Parts ...","rid":"bIMvj99fXsnDmM","rmt":0,"rt":0,"ru":"https://www.iknowparts.com.au/hino-bus/am100-bus/cooling-system/fan-belt-alternator-cm80-fan-belt-kl-kr-rb145","s":"BELT AIR CONDITIONING","sc":1,"st":"I Know Parts","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTWxPlShcE1wS7gLexbQrL7RowQgSKJvZgeyr3jRCER3FK8yxSU","tw":225}

350 × 350 - alibaba.com

{"id":"kZREV5Yd8w2x0M:","isu":"alibaba.com","itg":0,"ity":"jpg","oh":350,"ou":"https://sc01.alicdn.com/kf/HTB1bZcwNpXXXXbyXXXXq6xXFXXXg/6pk1260-engine-fan-belt-for-geely-gc2.jpg_350x350.jpg","ow":350,"pt":"6pk1260 Engine Fan Belt For Geely Gc2 Panda Gx2 1016003253 - Buy ...","rid":"_N4mOKw9_pKJSM","rmt":0,"rt":0,"ru":"https://www.alibaba.com/product-detail/6pk1260-engine-fan-belt-for-geely_60538269566.html","s":"6pk1260 engine fan belt for geely gc2 panda gx2 1016003253","sc":1,"st":"Alibaba","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRCDbQECzMxuv6xTyOfM-rEuGx67bwNffc6qYNUCdRrpGJbGz-5","tw":225}

421 × 300 - fixya.com

{"id":"h2XSjPo9LEqCnM:","isu":"fixya.com","itg":0,"ity":"jpg","oh":300,"ou":"http://i.fixya.net/uploads/images/tdisline_669.jpg","ow":421,"pt":"SOLVED: I need the belt diagram for my s-430 benz. - Fixya","rid":"hFk-4ee5Ygw-DM","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t9551987-need_belt_diagram","s":"I need the belt diagram - tdisline_669.jpg","sc":1,"st":"Fixya","th":189,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcR_rLJ2G1OYUWy21-QAoFuIzh0QxrvzqIyGAQmDouC3pHSy_l2y","tw":266}

500 × 563 - autozone.com

{"id":"mSiu3GnjB9RYwM:","isu":"autozone.com","itg":0,"ity":"gif","oh":563,"ou":"http://repairguide.autozone.com/znetrgs/repair_guide_content/en_us/images/0900c152/80/07/02/17/medium/0900c15280070217.gif","ow":500,"pt":"1967 Chevrolet Chevy II 5.3L 4BL OHV 8cyl | Repair Guides ...","rid":"OLqbRP6X83yvFM","rmt":0,"rt":0,"ru":"http://www.autozone.com/repairinfo/repairguide/repairGuideContent.jsp?chapterTitle\u003dRoutine+Maintenance+And+Tune-up\u0026partName\u003dRoutine+Maintenance\u0026pageId\u003d0900c152800701fd\u0026subChapterTitle\u003dBelts\u0026partId\u003d0900c152800700f9","s":"13: Belt tension test points and routing of accessory drive belts-3.9L engine without air conditioning or power steering","sc":1,"st":"AutoZone","th":238,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSvapkzJh-1WBEcGhpuB1kUzKqAEebIOo29A6XlvHLYENeqPUortA","tw":212}

311 × 300 - fixya.com

{"cb":6,"cl":3,"cr":3,"ct":6,"id":"bYHU1qiO4MTwHM:","isu":"fixya.com","itg":0,"ity":"gif","oh":300,"ou":"http://i.fixya.net/uploads/images/e88cb98.gif","ow":311,"pt":"SOLVED: Serpentine belt dia 95 chev corisca - Fixya","rid":"42HTGWBb3sKP4M","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t6038868-serpentine_belt_dia_95","s":"e88cb98.gif","sc":1,"st":"Fixya","th":220,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRyScqOzFjLgix4EvUVVsMWbeTjRvbqv_VNgIF64hUf2RZdR17HQg","tw":229}

140 × 140 - research.com

{"id":"XwUow7v9wa8MlM:","isu":"research.com","itg":0,"ity":"jpg","oh":140,"ou":"http://thumbs2.ebaystatic.com/m/mUikft2VDHEDq9oFN5GdP5w/140.jpg","ow":140,"pt":"1997 Chevrolet Tahoe Drive Belt Warning Review - Top 10 Problems","rid":"tf0ca-G3T1cGdM","rmt":0,"rt":0,"ru":"https://www.research.com/replacement-part-cost/chevrolet/tahoe/1997/drive-belt","s":"New Drive Belt Chevy Suburban SaVana Ford Explorer Chevrolet Tahoe C1500 Truck","sc":1,"st":"Free vehicle history reports","th":140,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQesdQz4Kn3arJZIHSrurGlJCkyuEkWUT3VuJ08kol_oAtYs7kf","tw":140}

225 × 169 - ebay.com

{"id":"PRfaD51IKaFS8M:","isu":"ebay.com","itg":0,"ity":"jpg","oh":169,"ou":"https://i.ebayimg.com/thumbs/images/g/tOoAAOSwPYZU2XQc/s-l225.jpg","ow":225,"pt":"Beck/Arnley Car \u0026 Truck Engines \u0026 Components for Triumph TR250 | eBay","rid":"gWyhwjpVyqDRWM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Beck-Arnley-Car-Truck-Engines-Components-for-Triumph-TR250/33612/bn_23531410","s":"Peugeot 604 Triumph TR250 \u0026 Acura Legend New Accessory Drive Belt 145-011090 (Fits: Triumph TR250)","sc":1,"st":"eBay","th":169,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRVRTu1WgIuvgWSFpAK79GFk--cYR7q-KC0vnmhgEzmMIS2-JROTA","tw":225}

210 × 210 - yoycart.com

{"id":"vihpDOi1NaULNM:","isu":"yoycart.com","itg":0,"ity":"jpg","oh":210,"ou":"https://img.alicdn.com/bao/uploaded/i4/742994713/TB27p8SeFXXXXXIXpXXXXXXXXXX_!!742994713.jpg_210x210.jpg","ow":210,"pt":"淘客啸啸from the best taobao agent yoycart.com","rid":"sHq9iYe3w31IOM","rmt":0,"rt":0,"ru":"https://www.yoycart.com/seller/%E6%B7%98%E5%AE%A2%E5%95%B8%E5%95%B8/?\u0026p\u003d6","s":"Honda 8 generation accord CP2 figure 2.4 2.4 song poem generator air conditioning power steering pump","sc":1,"st":"Yoycart.com","th":168,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRqkU-6NG93MaS9vA062oWLyiBW9di4eL3A8XY2KrNbI-o2U8Hq","tw":168}

184 × 225 - ebay.com

{"id":"2EXepiAFHiE5xM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/HN4AAOSw~oFXGdwW/s-l225.jpg","ow":184,"pt":"Mini Car and Truck Engine Belts, Pulleys and Brackets | eBay","rid":"-gcLvp7fW6k1zM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Mini-Car-and-Truck-Engine-Belts-Pulleys-and-Brackets/38656/bn_578623","s":"MINI 11287598833 GENUINE OEM IDLER PULLEY","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTsoLTUYsqKqNuqWMiaC4rGU8Ze9NemsEXixEBa4KmL9o2Ck4ex","tw":184}

242 × 211 - onlineautorepair.net

{"id":"DuigX7_ttZulwM:","isu":"onlineautorepair.net","itg":0,"ity":"jpg","oh":211,"ou":"http://www.onlineautorepair.net/uploads/2/1/4/6/2146059/2031271.jpg","ow":242,"pt":"5.7 L GM engine belt diagram \u2013 Online Auto Repair","rid":"A57m8huAKvrVFM","rmt":0,"rt":0,"ru":"http://www.onlineautorepair.net/2010/03/12/57-l-gm-engine-belt-diagram/","s":"Picture of the 5.7 L engine drive belt diagram","sc":1,"st":"Online Auto Repair","th":168,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQzquKFPVmE8wm2AsaLFDG1hcFWgvVGFPbIfq1Ewk-Os2xxH5Jk","tw":193}

225 × 217 - ebay.com

{"id":"zkzC1i6kMdwS4M:","isu":"ebay.com","itg":0,"ity":"jpg","oh":217,"ou":"https://i.ebayimg.com/thumbs/images/g/DMAAAOSwZ1lWdTsa/s-l225.jpg","ow":225,"pt":"Bosch Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Mercedes ...","rid":"Qf2H8yfHtTBV-M","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Bosch-Car-Truck-Engine-Belts-Pulleys-Brackets-for-Mercedes-Benz-C240/38656/bn_19549154","s":"Mercedes C240, C280, C300, C320, BRAND NEW BOSCH Serpentine Belt 011 997 97 92 (Fits: Mercedes-Benz C240)","sc":1,"st":"eBay","th":173,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQc2w73xIP08z5k0Ga4DM9CFmqN3BVSgoy0346Fi4_BhcYASXPW","tw":180}

215 × 225 - ebay.com

{"id":"m_UVMsaGr-fmpM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/ReEAAOSwYudXGIb0/s-l225.jpg","ow":215,"pt":"Infiniti Car and Truck Engine Belts, Pulleys and Brackets | eBay","rid":"2SLegAWATWlOSM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Infiniti-Car-and-Truck-Engine-Belts-Pulleys-and-Brackets/38656/bn_578017","s":"INFINITI A17206P002 GENUINE OEM ALTERNATOR BELT","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQc1xiD1Mgmch8tuzk7Uzr5e8s20RlOVOYEeZh7RLTpo1TkF4X1","tw":215}

140 × 140 - research.com

{"id":"6DZSlJgcE4YwOM:","isu":"research.com","itg":0,"ity":"jpg","oh":140,"ou":"http://thumbs2.ebaystatic.com/m/mVNLoGZlOU0658OXlJkMz-g/140.jpg","ow":140,"pt":"Ford F 150 Drive Belt Warning Review - Top 10 Problems","rid":"0wRw9uR8xz6BsM","rmt":0,"rt":0,"ru":"https://www.research.com/replacement-part-cost/ford/f-150/Drive-Belt","s":"Dayco Drive Belt New Chevy F150 Truck Express Van Suburban SaVana Ford 5060968","sc":1,"st":"Vehicle History","th":112,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSwpq1BcDBoM1j6DAK7JK_izENpMi3HCN9aSJsKN3nb65kk-W0rgA","tw":112}

600 × 252 - precision-auto-repair.com

{"cb":3,"cl":9,"cr":9,"ct":3,"id":"FmDccJL-7dC0PM:","isu":"precision-auto-repair.com","itg":1,"ity":"jpg","oh":252,"ou":"http://www.macsautoparts.com/assets/macs/images/size/600x/sku/64-18627.jpg","ow":600,"pt":"Miscellaneous - Fan Belts Precision Auto Repair has the largest ...","rid":"AF_49jOgCPPC-M","rmt":0,"rt":0,"ru":"http://precision-auto-repair.com/showitems.asp?cat\u003dMiscellaneous\u0026detailcat\u003dFan+Belts\u0026previtem\u003dEckler%5Fauto%5F44%2D18705%2D4\u0026nextitem\u003dEckler_auto_44-18717-1","s":"$34.25 More Details · Ford Pickup Truck Fan Belt - 223 6 Cylinder - F100, F25","sc":1,"st":"Precision Auto Repair","th":145,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTxSLxipvDegmsD4xu-rpjsGfFRBn4Qaa0YbZimn_GtFIXycu9i","tw":347}

250 × 250 - trupar.com

{"cb":3,"cl":6,"cr":6,"ct":3,"id":"cxgMxyDkzWKTWM:","isu":"trupar.com","itg":0,"ity":"gif","oh":250,"ou":"https://cdn3.volusion.com/eywkq.qkhhq/v/vspfiles/photos/UN17460-2T.gif?1415988873","ow":250,"pt":"6704720 Bob Cat Fan Belt | TruPar.com","rid":"TTzT99OxR2QLHM","rmt":0,"rt":0,"ru":"https://www.trupar.com/bobcat-fan-belt-p/bc6704720.htm","s":"Bobcat 6704720","sc":1,"st":"TruPar.com","th":200,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQGsOhNEo7D5HMtMjwpE7S28KHhG_qoSGt7L6o9BojCfhUJzYdYNA","tw":200}

800 × 800 - alibaba.com

{"id":"el082PZ0HkavtM:","isu":"alibaba.com","itg":1,"ity":"jpg","oh":800,"ou":"https://sc01.alicdn.com/kf/HTB1xGrHIpXXXXahXFXXq6xXFXXX4/Truck-Fan-Belt-Apply-To-Engine-4ZE1.jpg","ow":800,"pt":"China Truck Fan Belt, China Truck Fan Belt Manufacturers and ...","rid":"CLwdTlRzJl1m3M","rmt":0,"rt":0,"ru":"https://www.alibaba.com/countrysearch/CN/truck-fan-belt.html","s":"China Truck Fan Belt, China Truck Fan Belt Manufacturers and Suppliers on Alibaba.com","sc":1,"st":"Alibaba","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQ4dtPknBrBgjzj6sUAXRbJlziYqqd154vPTe8SiLlBNUFb0y4X2g","tw":225}

222 × 225 - ebay.com

{"id":"FQ0iYJgdcNPeoM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/2VgAAOSwTglYmJXw/s-l225.jpg","ow":222,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for BMW 318i ...","rid":"QvLVkvwysi3YfM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Car-Truck-Engine-Belts-Pulleys-Brackets-for-BMW-318i-Genuine-OEM/38656/bn_32410399","s":"BMW OEM 1994 318i 1.8L-L4-Serpentine Drive Fan Belt 11231721408 (Fits: BMW 318i)","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSo8TmdXuJYAnTLFnGQNsXGbVtxV_zMSHNyk2asN3a5DQ3-GltT6Q","tw":222}

1000 × 666 - autozone.com

{"cr":3,"id":"gX9oSgXiBqXrcM:","isu":"autozone.com","itg":0,"ity":"gif","oh":666,"ou":"http://repairguide.autozone.com/znetrgs/repair_guide_content/en_us/images/0900c152/80/06/c0/a1/large/0900c1528006c0a1.gif","ow":1000,"pt":"1997 Oldsmobile Cutlass Supreme 3.1L FI OHV 6cyl | Repair Guides ...","rid":"d8PuDezntRzBNM","rmt":0,"rt":0,"ru":"http://www.autozone.com/repairinfo/repairguide/repairGuideContent.jsp?chapterTitle\u003dRoutine+Maintenance+And+Tune-up\u0026partName\u003dGeneral+Information+%25252525252526+Maintenance\u0026pageId\u003d0900c1528006c087\u0026subChapterTitle\u003dBelts\u0026partId\u003d0900c1528006c22b","s":"26: Serpentine drive belt routing - 1996-97 7.4L engine without A/C (G models)","sc":1,"st":"AutoZone","th":183,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcS2fMURVGwZwDElCiH3TAw1Nw9Z_Z46U1NgkZl41aY_5Ufm-f-T","tw":275}

560 × 560 - kaiserwillys.com

{"cb":21,"cl":6,"cr":9,"ct":21,"id":"rfXWsUVzbRVSIM:","isu":"kaiserwillys.com","itg":1,"ity":"jpg","oh":560,"ou":"https://www.kaiserwillys.com/media/catalog/product/cache/1/image/560x560/9df78eab33525d08d6e5fb8d27136e95/1/1/1163_5383_popup_1.jpg","ow":560,"pt":"Fan Belt Fits 62-64 Truck, Station Wagon with 6-230 engine","rid":"MG_EvllG28t3XM","rmt":0,"rt":0,"ru":"https://www.kaiserwillys.com/fan-belt-fits-62-64-truck-station-wagon-with-6-230-engine","s":"More Views. Fan Belt ...","sc":1,"st":"Kaiser Willys","th":224,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQ6y-R_NQotd2-7V4MIAYb2tawsSDTaan4HRCa0voA99dcEtX1kTw","tw":224}

180 × 180 - globalsources.com

{"id":"V9hL7w8ICO0a0M:","isu":"globalsources.com","itg":1,"ity":"jpg","oh":180,"ou":"http://p.globalsources.com/IMAGES/PDT/S1149385504/Fan-belt.jpg","ow":180,"pt":"New fan belt Products | Latest \u0026 Trending Products","rid":"aadxE2ttCRZ7zM","rmt":0,"rt":0,"ru":"http://www.globalsources.com/products/fan-belt.html","s":"Fan belt 3033665 for KT19 Cummins engine belts","sc":1,"st":"Global Sources","th":144,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQHn9Lf9ic1XwjL3DtTEd9b_VKaQpJQHd-lb3vkvUKJ0vuhjg9cRQ","tw":144}

400 × 310 - 2040-parts.com

{"id":"KRwUW1eZOaNSfM:","isu":"2040-parts.com","itg":0,"ity":"jpg","oh":310,"ou":"http://www.2040-parts.com/_content/items/images/50/717450/001.jpg","ow":400,"pt":"Engines \u0026 Components for Sale / Page #2035 of / Find or Sell Auto ...","rid":"6FBMxrHqJyczWM","rmt":0,"rt":0,"ru":"http://www.2040-parts.com/car-truck-parts/Engines-Components/?start\u003d20340","s":"Jeep 4891598ab genuine oem factory original serpentine belt","sc":1,"st":"2040-parts.com","th":198,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTJ7dTWYM6GVWk1LGiKM1MvVEdJz321CpQgYgPgpX4F4bkLUZaF","tw":255}

1280 × 960 - allfourx4.com.au

{"cb":21,"cl":6,"cr":6,"ct":21,"id":"YpJkSmt1OJNUPM:","isu":"allfourx4.com.au","itg":0,"ity":"jpg","oh":960,"ou":"http://www.allfourx4.com.au/WebRoot/Store/Shops/allfourx4/54CF/8515/6FB7/35B9/163A/C0A8/DA35/CB84/90916-02209__1.jpg","ow":1280,"pt":"Fan Belt Toyota Hilux 2LT 3L Diesel Engine","rid":"YyDtUItD7qHqkM","rmt":0,"rt":0,"ru":"http://www.allfourx4.com.au/Alternator-Fan-Belt-Toyota-Hilux-2LT-3L-Diesel-Engine","s":"Alternator Fan Belt Toyota Hilux 2LT 3L Diesel Engine","sc":1,"st":"All Four X 4 Spares","th":194,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTxu5bn6yYl1IPDmyE_bzGw5ITwtq4L3i02Ky_LcU4v9DNxKvn_","tw":259}

500 × 279 - alibaba.com

{"cl":3,"cr":3,"ct":12,"id":"cOC0xucPPucczM:","isu":"alibaba.com","itg":0,"ity":"jpg","oh":279,"ou":"https://sc01.alicdn.com/kf/HTB1cgiHHXXXXXboaXXXq6xXFXXXk/202278790/HTB1cgiHHXXXXXboaXXXq6xXFXXXk.jpg","ow":500,"pt":"Forklift Parts Nissan Td27/k25 Fan Belt(size 13*1175) - Buy Fan ...","rid":"sPu1NjvZB-84-M","rmt":0,"rt":0,"ru":"https://www.alibaba.com/product-detail/forklift-parts-NISSAN-TD27-K25-fan_60159197263.html","s":"forklift parts NISSAN TD27/K25 fan belt(SIZE 13*1175)","sc":1,"st":"Alibaba","th":168,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRzCtuANwltqUVDuPJYghuEl8JmJrcue9zXe3cI7RBOjMVcZSHARw","tw":301}

800 × 304 - classicindustries.com

{"id":"dJPqx-TWYCobqM:","isu":"classicindustries.com","itg":0,"ity":"jpg","oh":304,"ou":"https://www.autopartsdb.net/assets/images/ProductImg/S/SB335.JPG","ow":800,"pt":"Chevrolet Truck Parts | Engine | Acc. Drive Belts | Classic Industries","rid":"fNhj7p3Xz-JMAM","rmt":0,"rt":0,"ru":"https://www.classicindustries.com/shop/truck/parts/engine/acc--drive-belts/","s":"33.5\" 5 Rib Serpentine Belt","sc":1,"st":"Classic Industries","th":138,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQC9YIChWmS9VroGerfV2mazmGUteygi8PMaPag9shhvqESbZLjcA","tw":364}

423 × 292 - fixya.com

{"cl":9,"cr":9,"ct":3,"id":"pb6mAA-Y6VDkdM:","isu":"fixya.com","itg":0,"ity":"jpg","oh":292,"ou":"http://i.fixya.net/uploads/images/12_14_2011_8_38_53_pm.jpg","ow":423,"pt":"I need the diagram to install serpentine belt for a 1989 - Fixya","rid":"DzPaWbbPAipgjM","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t10991352-need_diagram_install_serpentine_belt","s":"Belt diagram for 1989 chevy celebrity","sc":1,"st":"Fixya","th":186,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSmRyCXnbD3dW0_LGSPZJcj88P0qaElBTgYt7KCQhT-4KW41Y-R","tw":270}

224 × 225 - ebay.com

{"cb":3,"cl":3,"cr":3,"ct":9,"id":"BZ6n28aYQ9UmCM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/pN8AAOSwZ4dZGtwz/s-l225.jpg","ow":224,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Porsche Panamera ...","rid":"QpW-uVTrA6SqYM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Car-Truck-Engine-Belts-Pulleys-Brackets-for-Porsche-Panamera/38656/bn_19537226","s":"NEW Porsche Cayenne Panamera 7DK X 2880 Serpentine Drive Belt Contitech OEM (Fits: Porsche Panamera)","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQjbLmxEdrY4Tv1el5TB23VgcHRCY7p2Bpyn1EDplLGLDsAjcX0bA","tw":224}

140 × 132 - research.com

{"id":"qy-jAugF5YgEoM:","isu":"research.com","itg":0,"ity":"jpg","oh":132,"ou":"http://thumbs3.ebaystatic.com/m/m7n0ocLFMOof_y560fL5eeA/140.jpg","ow":140,"pt":"Toyota Yaris Drive Belt Warning Review - Top 10 Problems","rid":"1zg-bseNOa0WdM","rmt":0,"rt":0,"ru":"https://www.research.com/replacement-part-cost/toyota/yaris/Drive-Belt","s":"New Dayco Drive Belt E150 Van E250 E350 F250 Truck F350 Ford Ranger F-250","sc":1,"st":"Free vehicle history reports","th":132,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTLuNJ6vQ8ImgNkAIVQb1maeeSKepIHjcpbmRRA8jr4N-wsf6oysQ","tw":140}

169 × 225 - ebay.com

{"id":"Xkcvl9Y4zTZr3M:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/TT0AAOSw~XpZR-cx/s-l225.jpg","ow":169,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Jeep F-134 | eBay","rid":"YV7HEpuADvEyPM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Car-Truck-Engine-Belts-Pulleys-Brackets-for-Jeep-F-134/38656/bn_19548784","s":"Accessory Drive Belt-High Capacity V-Belt(Standard) Right ROADMAX 17480AP (Fits: Jeep F-134)","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSKnRbKEwIoNiYFbZflKKACjM8ADW1GKNBd6nLW4WGnbOS06uS3Uw","tw":169}

225 × 164 - ebay.com

{"cr":6,"ct":9,"id":"6ysWKhXk2k0zqM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":164,"ou":"https://i.ebayimg.com/thumbs/images/g/a0oAAOSwaB5Xj2pZ/s-l225.jpg","ow":225,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Nissan 350Z ...","rid":"XTHhSSWmQYjZVM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Car-Truck-Engine-Belts-Pulleys-Brackets-for-Nissan-350Z-Genuine-OEM/38656/bn_32416164","s":"Nissan 350Z 117204P102 Alternator Fan Serpentine Drive Belt 11720-4P102 (Fits: Nissan 350Z)","st":"eBay","th":164,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQRwCm_4Pw4EOOsJPqajl6FaTFo1vHz6NR4iBnAzQohtDF6VAzH","tw":225}

208 × 300 - fixya.com

{"id":"llLZd0qZIm0m0M:","isu":"fixya.com","itg":0,"ity":"jpg","oh":300,"ou":"http://i.fixya.net/uploads/images/b170623.jpg","ow":208,"pt":"2006 suzuki aerio timing belt diagram - Fixya","rid":"ANt3TBAkb-MJUM","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t16011890-2006_suzuki_aerio_timing_belt_diagram","s":"... supposed to line up. The tensioner has a hex hole in it that you have to put a allen head wrench in to lever and release before you can get the belt on. ...","sc":1,"st":"Fixya","th":240,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTAHM6qx3O0a7J9ZFb1KGXCaWORWAlp4be1GwbIgsfybax6gcE_5w","tw":166}

225 × 169 - ebay.com

{"cl":6,"cr":3,"ct":3,"id":"7ZhaIcUv6FybyM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":169,"ou":"https://i.ebayimg.com/thumbs/images/g/dScAAOSwqu9VOTNe/s-l225.jpg","ow":225,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Porsche Panamera ...","rid":"QpW-uVTrA6SqYM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Car-Truck-Engine-Belts-Pulleys-Brackets-for-Porsche-Panamera/38656/bn_19537226","s":"Porsche Panamera Serpentine Drive Belt 7DK X 2880 Contitech OEM ships fast (Fits: Porsche Panamera)","sc":1,"st":"eBay","th":169,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcR42M9IogLj4ah7SMH4iKcvy1LdmbMH_m46D4laxCBTJ6Mf-B2tdQ","tw":225}

600 × 600 - alibaba.com

{"id":"nGedySynSKlkoM:","isu":"alibaba.com","itg":0,"ity":"jpg","oh":600,"ou":"https://sc01.alicdn.com/kf/HTB1SYOFMVXXXXblXXXXq6xXFXXXf/TFR-FAN-BELT-OE-8-94479101-5.jpg","ow":600,"pt":"Isuzu Fan Belt, Isuzu Fan Belt Suppliers and Manufacturers at ...","rid":"plH358y8xRlZEM","rmt":0,"rt":0,"ru":"https://www.alibaba.com/showroom/isuzu-fan-belt.html","s":"Isuzu Fan Belt, Isuzu Fan Belt Suppliers and Manufacturers at Alibaba.com","sc":1,"st":"Alibaba","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTI4tb0ClvNyedd3D4xORwsLUvV61j3QYP5a3waiVYetLc_LQ4J","tw":225}

225 × 213 - ebay.com

{"cb":9,"cl":6,"cr":3,"ct":18,"id":"dT9I9BlNWUR8wM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":213,"ou":"https://i.ebayimg.com/thumbs/images/g/p3wAAOSwAO9ZP33a/s-l225.jpg","ow":225,"pt":"Chevrolet Belts, Pulleys, \u0026 Brackets | eBay","rid":"N7cnag-ZEucMoM","rmt":0,"rt":0,"ru":"http://www.ebay.com/sch/Chevrolet-Belts-Pulleys-Brackets/38656/bn_1357542/i.html?_fsrp\u003d1\u0026_pgn\u003d1","s":"New Bando Drive Belt Chevy Ram Truck Express Van SaVana Coupe Sedan Chevrolet G6","sc":1,"st":"eBay","th":213,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSYzPPjP9kFwZ23KluHA-H0ycQ_8hrPElGBPBLncNvLDevLqWcrGA","tw":225}

176 × 132 - thegenuinealternative.com

{"cb":18,"cl":12,"cr":15,"ct":12,"id":"5UUFql5X6uBVWM:","isu":"thegenuinealternative.com","itg":0,"ity":"jpg","oh":132,"ou":"http://thegenuinealternative.com/wp-content/uploads/2015/09/520048-176x132.jpg","ow":176,"pt":"DAF Truck PartsThe Genuine Alternative VTP","rid":"9cwWexrt_jgGYM","rmt":0,"rt":0,"ru":"http://thegenuinealternative.com/daf-truck-parts/","s":"CF75, XF95, 520048 ALTERNATOR DRIVE BELT 1398637 CF75, XF95","st":"The Genuine Alternative VTP","th":105,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTb0WHCmw6AS29Jjkck8901xTCN29tKU_5ofPV-OgCOmGYEUHq-","tw":140}

219 × 225 - ebay.com

{"id":"wHmFCTCl76CbdM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/GXgAAOSw~AVYuoHd/s-l225.jpg","ow":219,"pt":"1 Year Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Scion xB ...","rid":"vYavV8rykepIyM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/1-Year-Car-Truck-Engine-Belts-Pulleys-Brackets-for-Scion-xB/38656/bn_51154553","s":"Drive Belt for Scion tC, xB, Toyota Camry, Highlander, RAV4, Solara (Fits: Scion xB)","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSIaIhJ6Ys3j2N9qazqUbj9TalEWj7ObvmLsV9tICheAhw5eIJgJw","tw":219}

225 × 169 - ebay.com

{"cr":12,"ct":3,"id":"m4RvowI87nYZbM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":169,"ou":"https://i.ebayimg.com/thumbs/images/g/LYEAAOSw0j9ZT7pG/s-l225.jpg","ow":225,"pt":"Other Parts in MModel:Trailduster, MMake:Plymouth | eBay","rid":"_HAMlFK4UQvyVM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Other-Parts/10076?MMake\u003dPlymouth\u0026MModel\u003dTrailduster","s":"NOS Mopar Original Dodge Truck Ramcharger Plymouth Trail Duster Fan Belt","st":"eBay","th":135,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRjxEekTD3xPXeTVG9f7ga75dQqQburqf10aP0Uj8FBb8IcmSct","tw":180}

490 × 490 - 1aauto.com

{"id":"YZZ9NT8eTrNsDM:","isu":"1aauto.com","itg":0,"ity":"jpg","oh":490,"ou":"https://dgzmd7u6z2by7.cloudfront.net/partimage/ESB/GAESB00001/f83628ea566049b58d14db741dcc6690_490.jpg","ow":490,"pt":"Dodge Serpentine Belt Gates K070975 - GAESB00001 at 1A Auto.com","rid":"0af9gpFYKKmU1M","rmt":0,"rt":0,"ru":"https://www.1aauto.com/dodge-serpentine-belt-gates-k070975/i/gaesb00001","s":"1992-03 Dodge Truck w/AC 3.9L 5.2L 5.9L Serpentine Belt","sc":1,"st":"1A Auto","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcS7-RtjIJ9DncQ4Nh17rmlkFts04J-VLoK41xGo6Nulg4yXgobvjA","tw":225}

225 × 225 - ebay.com

{"id":"WliYR8pFvdS0jM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"http://i.ebayimg.com/thumbs/images/g/vnAAAOSwK6RZHrg4/s-l225.jpg","ow":225,"pt":"ACDelco Car and Truck Engine Belts, Pulleys and Brackets | eBay","rid":"AtoliFc8J_JWnM","rmt":0,"rt":0,"ru":"http://www.ebay.com/sch/Belts-Pulleys-Brackets/38656/i.html?_fsrp\u003d1\u0026Brand\u003dACDelco\u0026_pgn\u003d3\u0026_skc\u003d100","s":"88932813 AC Delco Serpentine Belt New Chevy Chevrolet C1500 Truck 6K1045","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSC4iaGIzGLLSPDM4dFmXFGfNiTlOraTj-gWXs8Ifj64mzxLCQk","tw":225}

225 × 205 - ebay.com

{"id":"jo3eLlTXYG1lGM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":205,"ou":"https://i.ebayimg.com/thumbs/images/g/6WMAAOSwLVZVvI~q/s-l225.jpg","ow":225,"pt":"Bosch Car and Truck Engine Belt | eBay","rid":"RlGQ6AQdnkRN4M","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Bosch-Car-and-Truck-Engine-Belt/38656/bn_578102","s":"Mercedes W163 R170 W129 W207 W220 Serpentine Belt BOSCH OEM 6PK 2390","sc":1,"st":"eBay","th":205,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRdoVztQ1rlPEzLsEfai6KAbop90rWBdBMc79KC3Y6F-xDhFUkG","tw":225}

500 × 333 - guide.alibaba.com

{"cb":15,"cl":6,"cr":9,"ct":9,"id":"_-q6AL3Q0Z0opM:","isu":"guide.alibaba.com","itg":0,"ity":"jpg","oh":333,"ou":"https://guideimg.alibaba.com/images/shop/78/09/18/1/land-rover-freelander-2-0td-l-series-alternator-belt-pqs100851_5103511.jpg","ow":500,"pt":"Cheap Alternator Belt, find Alternator Belt deals on line at ...","rid":"fnw-S7_HoHZehM","rmt":0,"rt":0,"ru":"https://guide.alibaba.com/shopping-guides/alternator-belt.html","s":"Get Quotations · LAND ROVER FREELANDER 2.0TD L-SERIES ALTERNATOR BELT PQS100851","sc":1,"st":"Alibaba","th":183,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQre76UBYCvzSgMyf5a64uldF1PhvEoHwkSc6P5qK4QpL7eQyy8TQ","tw":275}

225 × 148 - ebay.com

{"id":"bOybGFvntcgY2M:","isu":"ebay.com","itg":0,"ity":"jpg","oh":148,"ou":"https://i.ebayimg.com/thumbs/images/g/uToAAOSw7W5XORFK/s-l225.jpg","ow":225,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Nissan 300ZX ...","rid":"COE704pwO76D_M","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Car-Truck-Engine-Belts-Pulleys-Brackets-for-Nissan-300ZX-Genuine-OEM/38656/bn_32415022","s":"Genuine 1990-1996 Nissan 300ZX Alternator Belt A172M-V53SMVW (Fits: Nissan 300ZX)","sc":1,"st":"eBay","th":148,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcS47bKkkLpyDvrQ1z2d2iNGIGFTMzPHFS4NVNBUlLNE6LXw_7V4ig","tw":225}

250 × 250 - dir.indiamart.com

{"cb":21,"cl":3,"cr":3,"ct":15,"id":"RE8MrO2dgKIk3M:","isu":"dir.indiamart.com","itg":0,"ity":"jpg","oh":250,"ou":"https://3.imimg.com/data3/ML/SU/MY-13711989/fan-belt-250x250.jpg","ow":250,"pt":"Fan Belts - Ahu Belt Suppliers, Traders \u0026 Manufacturers","rid":"esAmD9nvtpUytM","rmt":0,"rt":0,"ru":"https://dir.indiamart.com/impcat/fan-belts.html","s":"With sincerity and hard work of our experts, we have carved a niche for ourselves in this domain by offering Fan Belt. The provided belt is widely used for ...","sc":1,"st":"Business Directory - IndiaMART","th":200,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRRsfCx9_ok04zf_J9r4Svlz4d1-bNtdr-AgzOTWgCar5NRrFBx8Q","tw":200}

220 × 165 - alibaba.com

{"id":"IhwIBom338J9bM:","isu":"alibaba.com","itg":0,"ity":"jpg","oh":165,"ou":"https://sc02.alicdn.com/kf/HTB1hjTdRFXXXXaRXXXX760XFXXXr/Auto-parts-90916-T2006-7PK1515-fan-belts.png_220x220.jpg","ow":220,"pt":"Fan Belt For Toyota Vigo, Fan Belt For Toyota Vigo Suppliers and ...","rid":"sYrhZd61xd9KhM","rmt":0,"rt":0,"ru":"https://www.alibaba.com/showroom/fan-belt-for-toyota-vigo.html","s":"Fan Belt For Toyota Vigo, Fan Belt For Toyota Vigo Suppliers and Manufacturers at Alibaba.com","sc":1,"st":"Alibaba","th":165,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcS0EWXxOpRCdZhKomv-JlzfyODfERyrl8vW8rZSkKJWcBpdcTOP0w","tw":220}

198 × 300 - fixya.com

{"id":"fKCPJTudKrvjoM:","isu":"fixya.com","itg":0,"ity":"jpg","oh":300,"ou":"http://i.fixya.net/uploads/images/6e697d6f-0b1c-4bfb-975e-7e0d899c0b03.jpg","ow":198,"pt":"SOLVED: I need the serpentine belt routing diagram for a - Fixya","rid":"KEqGWelD81C1AM","rmt":0,"rt":0,"ru":"http://www.fixya.com/cars/t8340668-need_serpentine","s":"Serpentine belt diagram","sc":1,"st":"Fixya","th":240,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSRTvOVHjrtoCQ8L9B2DAzMyXqGjaHOQQ1gl7ezbFTCPvT8tUMv","tw":158}

600 × 600 - alibaba.com

{"id":"voDXiTN_dVcuIM:","isu":"alibaba.com","itg":0,"ity":"jpg","oh":600,"ou":"https://sc01.alicdn.com/kf/HTB1e16jKVXXXXXoXVXXq6xXFXXX6/Car-fan-belt-6PK1882-v-ribbed-belt.jpg","ow":600,"pt":"Fan Belt, Fan Belt Suppliers and Manufacturers at Alibaba.com","rid":"I9-Z8xGZLV2H6M","rmt":0,"rt":0,"ru":"https://www.alibaba.com/showroom/fan-belt.html","s":"","sc":1,"st":"Alibaba","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSVNd2Sm4UIcHPjEuZYeqHrJe53lYafBQVs_io-l2DSsw45piuEsg","tw":225}

321 × 229 - alibaba.com

{"cb":21,"cl":6,"cr":6,"ct":21,"id":"JhmrE3iDjT15tM:","isu":"alibaba.com","itg":0,"ity":"jpg","oh":229,"ou":"https://sc01.alicdn.com/kf/HTB11L5hMVXXXXXwXFXXq6xXFXXXH/Fan-belt-81500060228-for-Man-F2000-spare.jpg","ow":321,"pt":"Man Truck Fan Belt, Man Truck Fan Belt Suppliers and Manufacturers ...","rid":"SZ-sOp9bkerqFM","rmt":0,"rt":0,"ru":"https://www.alibaba.com/showroom/man-truck-fan-belt.html","s":"Man Truck Fan Belt, Man Truck Fan Belt Suppliers and Manufacturers at Alibaba.com","sc":1,"st":"Alibaba","th":183,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTpu2Qhs3XUIYPEmdDxQ2zgIFeV5UTSNtlbMGH7XrdFjBZvRNVW","tw":256}

600 × 600 - alibaba.com

{"id":"6HL1EaSENYSNYM:","isu":"alibaba.com","itg":0,"ity":"jpg","oh":600,"ou":"https://sc02.alicdn.com/kf/HTB1CktXKVXXXXanXVXXq6xXFXXX3/Alternator-and-Auto-Fan-Belt-for-Toyota.jpg","ow":600,"pt":"Toyota Fan Belt, Toyota Fan Belt Suppliers and Manufacturers at ...","rid":"1Qb2rMlNCfriHM","rmt":0,"rt":0,"ru":"https://www.alibaba.com/showroom/toyota-fan-belt.html","s":"Toyota Fan Belt, Toyota Fan Belt Suppliers and Manufacturers at Alibaba.com","sc":1,"st":"Alibaba","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQJ021TI4SfSVhc8avbYACimBvKSmcUgmz1O07LdXVqmZaxxN2ppA","tw":225}

225 × 225 - ebay.com

{"id":"mTMjh5QbEUM-7M:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/aU8AAOSwmmxW3mX3/s-l225.jpg","ow":225,"pt":"Bando Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Nissan ...","rid":"cKrfw3Ikz-kTpM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Bando-Car-Truck-Engine-Belts-Pulleys-Brackets-for-Nissan-Pulsar/38656/bn_19553383","s":"Serpentine Belt B\u0026o Fits: Acura Infiniti Q45 Nissan NX Pulsar NX Suzuki Toyota (Fits: Nissan Pulsar NX)","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQSEnu6lL7dWcR4xeygbJHZGWlB-Rvgq2PWqWxuTGNUeBJtea0G","tw":225}

709 × 709 - wholesaler.alibaba.com

{"id":"tHoaaDvVUVLFlM:","isu":"wholesaler.alibaba.com","itg":1,"ity":"jpg","oh":709,"ou":"http://sc02.alicdn.com/kf/HTB1TLc1KVXXXXXbapXXq6xXFXXXG/desel-engine-belt-3911588-belt-8PK1425-for.jpg","ow":709,"pt":"Wholesale fan belt truck - Online Buy Best fan belt truck from ...","rid":"ZYDH9sTCwDKnhM","rmt":0,"rt":0,"ru":"http://wholesaler.alibaba.com/w/wholesale-fan-belt-truck.html","s":"desel engine \u003cstrong\u003ebelt\u003c\/strong\u003e 3911588 ...","sc":1,"st":"Alibaba Wholesale","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQ9waSEIXoW61ept5dVCJn1WMfkrCq6-zHvzt48GpsW2absSWIG","tw":225}

225 × 225 - ebay.com

{"id":"eHq0wjmggd91xM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/BdkAAOSwInxXNaHB/s-l225.jpg","ow":225,"pt":"Dayco Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Land Rover ...","rid":"PZ5aatt7nvAjfM","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Dayco-Car-Truck-Engine-Belts-Pulleys-Brackets-for-Land-Rover-LR3/38656/bn_19528862?_dcat\u003d38656","s":"Land Rover V8 4.4L Primary Serpentine Belt 6PK2360 Dayco PQR500330 (Fits: Land Rover LR3)","sc":1,"st":"eBay","th":180,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSnY6WPvI7xpBpMPEpz0fo60GeATo80mJoEfEe7m_Vu3i3rZ5ZS2Q","tw":180}

228 × 228 - japspareparts.com.au

{"cb":12,"ct":12,"id":"5fi5lHDsD_QidM:","isu":"japspareparts.com.au","itg":0,"ity":"jpg","oh":228,"ou":"https://www.japspareparts.com.au/image/cache/catalog/feed_2/75941-4A1705-228x228.jpg","ow":228,"pt":"MITSUBISHI/FUSO TRUCK","rid":"-FTz_9EpgoBZAM","rmt":0,"rt":0,"ru":"https://www.japspareparts.com.au/mitsubishi-fuso-truck","s":"MITSUBISHI/FUSO TRUCK FK102 1980-1984 BELT FAN 5071A4","sc":1,"st":"MITSUBISHI/FUSO TRUCK","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTwX4H5GWfSuSEmyFJSOEw_TBi9D4AUsCCx4yJ1WfRM0CC2Sm8p","tw":225}

225 × 155 - ebay.com

{"cb":3,"cl":6,"cr":3,"ct":3,"id":"X-Ed9TQbH_to9M:","isu":"ebay.com","itg":0,"ity":"jpg","oh":155,"ou":"https://i.ebayimg.com/thumbs/images/g/WUIAAOSwBLlVNhWt/s-l225.jpg","ow":225,"pt":"Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for BMW 3.0CSi | eBay","rid":"2sRImdmm4C-q1M","rmt":0,"rt":0,"ru":"https://www.ebay.com/b/Car-Truck-Engine-Belts-Pulleys-Brackets-for-BMW-3-0CSi/38656/bn_19548799","s":"BMW E3 E9 2800 3.0CS Bavaria Accessory Drive Belt Continental 13 X 1060 (Fits: BMW 3.0CSi)","sc":1,"st":"eBay","th":155,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSDYcLojfln_Bf0mAXcq0dWz1UeEDFg84D5r-h1nFKSqvpwOj4g","tw":225}

140 × 140 - research.com

{"id":"6H7T_uaoB4HbqM:","isu":"research.com","itg":0,"ity":"jpg","oh":140,"ou":"http://thumbs3.ebaystatic.com/m/mVlIzAbYmY_f4vIrwqpdvZw/140.jpg","ow":140,"pt":"Jaguar XKR Drive Belt Warning Review - Top 10 Problems","rid":"0GbfK3Hlv4bALM","rmt":0,"rt":0,"ru":"https://www.research.com/replacement-part-cost/jaguar/xkr/drive-belt","s":"Dayco Drive Belt New Chevy F150 Truck F250 Express Van SaVana 5060910","sc":1,"st":"Vehicle History","th":140,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcR1pNr1BaZbgw_Bd1BUkzDw8_uYwXfIWU4r0fwO78_P_vr2qF6W","tw":140}

217 × 225 - ebay.com

{"id":"mLLqUrhzHyzUvM:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"http://thumbs3.ebaystatic.com/d/l225/m/mll95Ie9FV8sO93RPgrd2cQ.jpg","ow":217,"pt":"Similarities and Differences of Fan, Alternator \u0026 Serpentine Belt ...","rid":"w6pvrsTDXV80mM","rmt":0,"rt":0,"ru":"http://www.ebay.com/gds/Similarities-and-Differences-of-Fan-Alternator-Serpentine-Belt-/10000000205254474/g.html","s":"GM OEM-Serpentine Drive Fan Belt 19244956","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRImcbVibuWUwUbZFd17U7sg0rTr_AYuErqC9Dy-udyR8AFkpw4","tw":217}

180 × 180 - globalsources.com

{"cb":21,"cl":3,"cr":3,"ct":21,"id":"7hKYmKzR-lQhDM:","isu":"globalsources.com","itg":1,"ity":"jpg","oh":180,"ou":"http://p.globalsources.com/IMAGES/PDT/S1126928357/Fan-Belt-4FE1-4JB1-4JB1T-V-Belt.jpg","ow":180,"pt":"New fan belt Products | Latest \u0026 Trending Products","rid":"aadxE2ttCRZ7zM","rmt":0,"rt":0,"ru":"http://www.globalsources.com/products/fan-belt.html","s":"Fan Belt 4FE1 4JB1 4JB1T V-Belt","sc":1,"st":"Global Sources","th":144,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQ8DQwk1pOl1_-mByB1xmAaOxCtvobZfTNSFA5Mi7cNzGcySDXT8g","tw":144}

450 × 338 - 123rf.com

{"cb":21,"cl":3,"cr":3,"ct":21,"id":"udeCuJtkM4mSgM:","isu":"123rf.com","itg":0,"ity":"jpg","oh":338,"ou":"https://us.123rf.com/450wm/sevennew/sevennew1112/sevennew111200021/11731301-automotive-engine-belt.jpg?ver\u003d6","ow":450,"pt":"Fan Belt Stock Photos Images. Royalty Free Fan Belt Images And ...","rid":"p2kyWWM3oCVXIM","rmt":0,"rt":0,"ru":"https://www.123rf.com/stock-photo/fan_belt.html","s":"fan belt: Automotive engine belt","sc":1,"st":"123RF.com","th":194,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTM7DOn_70x9exxrS36wFjgS9Mc6_8bbkRzBkbrqcGeRPttDtLm","tw":259}

140 × 121 - research.com

{"id":"RT3PkCflpNMImM:","isu":"research.com","itg":0,"ity":"jpg","oh":121,"ou":"http://thumbs2.ebaystatic.com/m/mcxtgUurlVrNMg9Ec1cS2nw/140.jpg","ow":140,"pt":"2010 Jeep Grand Cherokee Drive Belt Warning Review - Top 10 Problems","rid":"W412dObV2i0QAM","rmt":0,"rt":0,"ru":"https://www.research.com/replacement-part-cost/jeep/grand-cherokee/2010/drive-belt","s":"New Drive Belt Mercedes Ram Truck E Class Sprinter Dodge 1500 Grand Cherokee for","sc":1,"st":"Free vehicle history reports","th":121,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTeAfSXNsHhGgL92T7cJPsZTmLLO6OZENKaGcg19eCKnYrJoWil1w","tw":140}

225 × 225 - ebay.com

{"cb":21,"cl":9,"cr":9,"ct":21,"id":"zut3fXxsRS2B1M:","isu":"ebay.com","itg":0,"ity":"jpg","oh":225,"ou":"https://i.ebayimg.com/thumbs/images/g/fbgAAOSwo0JWHumE/s-l225.jpg","ow":225,"pt":"Continental Car \u0026 Truck Engine Belts, Pulleys \u0026 Brackets for Audi ...","rid":"UVIaV78qFZrgtM","rmt":0,"rt":0,"ru":"http://www.ebay.com/sch/Continental-Car-Truck-Engine-Belts-Pulleys-Brackets-for-Audi-A4-Quattro/38656/bn_19544839/i.html","s":"1.8T 2.0T Serpentine Belt CONTINENTAL 06D 903 137 E - Audi A4 / A4 Quattro (Fits: Audi A4 Quattro)","sc":1,"st":"eBay","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcQ4H2dX3DMaZfyduk0cq8xZ5VIQ-Jurwme-hh2iRl2IHSRZ46Pq","tw":225}

Bagikan

Facebook

Twitter

Google+

Kirim email

Klik untuk menyalin tautan

Bagikan tautan

Tautan disalin

[PDF] SOLVED: NEED DIAGRAM FOR ROUTING THE SERPENTINE BELT - Fixya

Fixya400 × 188Telusuri gambar


Kunjungi laman

Lihat gambar

Bagikan

Lihat PDF

Gambar bisa saja memiliki hak cipta.Dapatkan bantuanKirim masukan

[PDF] Dual overhead cam timing belt diagram | Diagrams for Car Repairs ...

Pinterest236 × 176Telusuri gambar

Ford Diesel 7.3L Super Duty Belt Diagram.

Kunjungi laman

Lihat gambar

Bagikan

Lihat PDF

Gambar bisa saja memiliki hak cipta.Dapatkan bantuanKirim masukan

[PDF] Serpentine belt diagram for 2002 chevy tracker - Fixya

Fixya334 × 300Telusuri gambar

An error occurred.

Kunjungi laman

Lihat gambar

Bagikan

Lihat PDF

Gambar terkait:

{"id":"NAN2ES2qbvgAQM","rmt":0,"rt":0}

{"au":"","clt":"n","fd":"","id":"j4LIUUHM17zQoM","kc":"","oh":214,"os":"","ou":"http://i.ebayimg.com/thumbs/images/g/iPEAAOSwE3BXFd4l/s-l225.jpg","ow":225,"pt":"Volkswagen Beetle Ремни, шкивы и кронштейны | eBay","rh":"ebay.com","rid":"cFaDwV4Nm-k3cM","rmt":0,"rt":10,"ru":"http://www.ebay.com/sch/Belts-Pulleys-Brackets/38656/i.html?_ul\u003dBY\u0026MModel\u003dBeetle\u0026MMake\u003dVolkswagen\u0026Brand\u003dVolkswagen","s":"VOLKSWAGEN 07K145933G GENUINE OEM SERPENTINE BELT","st":"ebay.com","th":171,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSXrRBaaodavjMP_Spl0IaDqoXuQU5onGrJ1xjUbAzPSBKaiVFz","tw":180}

{"au":"","clt":"n","fd":"","id":"5Q9joYl84b7vbM","kc":"","oh":308,"os":"","ou":"http://www.roverparts.com/images/serpentine%20belt%20diagrams/SerpentineDiagD1.jpg","ow":310,"pt":"Kia Drive Belt Diagram, Kia, Free Engine Image For User Manual Download","rh":"odicis.org","rid":"fpNMHdMwl6R3GM","rmt":0,"rt":10,"ru":"https://www.odicis.org/kia/kia-drive-belt-diagram","s":"Kia Sportage Replacement Parts","st":"odicis.org","th":224,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcSp3AoZVKlKwemE8wTnj0WsqnEMKHlhBAQS6TggS7P4ckIywDgl","tw":225}

{"au":"","clt":"n","fd":"","id":"h-HyAlcdIyAA3M","kc":"","oh":261,"os":"","ou":"http://serpentinebelthq.com/wp-content/uploads/2015/05/2007-mazda-cx-7-l4-2-3l-serpentine-belt-diagram.gif","ow":398,"pt":"Nissan An 5 6 Engine, Nissan, Free Engine Image For User Manual Download","rh":"odicis.org","rid":"7PmpgxlAbiMzGM","rmt":0,"rt":10,"ru":"https://www.odicis.org/nissan/nissan-an-5-6-engine","s":"2012 mazda cx 7 grand touring belts \u0026 pulleys diagram","st":"odicis.org","th":182,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTpr2fJSsh0PymS40uPWvXZ1lZKFIBIzNAav7R1gW1r12uVaCxZ","tw":277}

{"au":"","clt":"n","fd":"","id":"ksCmUJg6B_qqUM","kc":"","oh":294,"os":"","ou":"http://i228.photobucket.com/albums/ee210/CD7_Accord_SiR/2C2D86FF-FB31-415C-9B93-AA45BF2973DC.gif","ow":292,"pt":"Need a serpentine belt diagram - AcuraZine - Acura Enthusiast Community","rh":"acurazine.com","rid":"pAsGBg5xSHXlCM","rmt":0,"rt":10,"ru":"https://acurazine.com/forums/second-generation-cl-discussion-2000-2003-50/need-serpentine-belt-diagram-943527/","s":"2002 honda odyssey serpentine belt diagram","st":"acurazine.com","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcR38nVi9nN1S7q1nUWXgO0h9ZRRDGIpvyWLfuj2e3gZaRwGbNQF","tw":224}

{"au":"","clt":"n","fd":"","id":"BoMUS1NIo_HjcM","kc":"","oh":268,"os":"","ou":"http://serpentinebelthq.com/wp-content/uploads/2015/05/1995-1998-land-rover-range-rover-4-04-6l-serpentine-belt-diagram.jpg","ow":310,"pt":"New Ford 5 4l Engine, New, Free Engine Image For User Manual Download","rh":"odicis.org","rid":"32STDtPenDoCjM","rmt":0,"rt":10,"ru":"https://www.odicis.org/new/new-ford-5-4l-engine","s":"1995 1998 Land Rover Range Rover 4 04 6l Serpentine Belt Diagram","st":"odicis.org","th":209,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcT-Pie60O8LG8yesMns7_kEbKuaJ6kCbFYELiuy7A7CmdDNpd6_","tw":241}

{"au":"","clt":"n","fd":"","id":"PUZdz0Sm6EjNZM","kc":"","oh":300,"os":"","ou":"http://i.fixya.net/uploads/images/f9e6f69.gif","ow":300,"pt":"88 Ford F 150 Turn Signal Wiring, 88, Free Engine Image For User Manual Download","rh":"odicis.org","rid":"7qQoGWqpgVYsQM","rmt":0,"rt":10,"ru":"https://www.odicis.org/88/88-ford-f-150-turn-signal-wiring","s":"Cadillac Turn Signal Wiring Diagram","st":"odicis.org","th":225,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcTSrz9pDDdfn74IrJMCsdQ7f9uCFDRir3aIJE4btenUMCHpS807","tw":225}

Tampilkan lebih banyak

{"au":"","clt":"n","fd":"","id":"Ilj7nme3LTiSSM","kc":"","oh":467,"os":"","ou":"https://i1.wp.com/serpentinebelthq.com/wp-content/uploads/2015/05/2003-lincoln-navigator-5-4l-serpentine-belt-diagram.gif","ow":650,"pt":"2003 Lincoln Navigator 5.4L Serpentine Belt Diagram - serpentinebelthq.com","rh":"serpentinebelthq.com","rid":"r4ZpSRqWvy5idM","rmt":0,"rt":10,"ru":"http://serpentinebelthq.com/2003-lincoln-navigator-5-4l-serpentine-belt-diagram/","s":"1 . Belt Tensioner 2 . Idler Pulley 3 . Generator Pulley 4 . Idler Pulley 5 . Power Steering Pump Pulley","st":"serpentinebelthq.com","th":190,"tu":"https://encrypted-tbn0.gstatic.com/images?q\u003dtbn:ANd9GcRFl_FAajS-oH_vkG4MXYkuZN050H9QmfReTBPUbHsoMZ3qyqF0","tw":265}

Gambar bisa saja memiliki hak cipta.Dapatkan bantuanKirim masukan
