What is a Simple Inverter

An inverter which uses minimum number of components for converting a 12 V DC to 230 V AC is called a simple inverter. A 12 V lead acid battery is the most standard form of battery which is used for operating such inverters.
Let's begin with the most simplest in the list which utilizes a couple of 2N3055 transistors and some resistors.

1) Simple Inverter Circuit using Cross Coupled Transistors

The article deals with the construction details of a mini inverter. Read to know regrading the construction procedure of a basic inverter which can provide reasonably good power output and yet is very affordable and sleek.
There may be a huge number of inverter circuits available over the internet and electronic magazines. But these circuits are often very complicated and hi-end type of inverters.
Thus we are left with no choice but just to wonder how to build power inverters that can be not only easy to build but also low cost and highly efficient in its working.

12v to 230v inverter circuit diagram

Well your search for such a circuit ends here. The circuit of an inverter described here is perhaps the smallest as far its component count goes yet is powerful enough to fulfill most of your requirements.

Complete Wiring Layout

After the above wiring is completed, it's time to hook it up with a 12V 7Ah battery, with a 60 watt lamp attached at the transformer secondary. When switched ON the result would be an instant illumination of the load with an astonishing brightness.

the key element is the transformer, make sure the transformer is genuinely rated at 5 amp, otherwise you may find the output power a lot lesser than the expectation.
I can tell this from my experience, I built this unit twice, once when I was in college, and the second time recently in the year 2015. Although I was more experienced during the recent venture I could not get the awesome power that I had acquired from my previous unit. The reason was simple, the previous transformer was a robust custom built 9-0-9V 5 amp transformer, compared to the new one in which I had used probably a falsely rated 5 amp, which was actually only 3 amp with its output.

Parts List

You will require just the following few components for the construction:

• R1, R2= 100 OHMS./ 10 WATTS WIRE WOUND
• R3, R4= 15 OHMS/ 10 WATTS WIRE WOUND
• T1, T2 = 2N3055 POWER TRANSISTORS (MOTOROLA).
• TRANSFORMER= 9- 0- 9 VOLTS / 8 AMPS or 5 amps.
• AUTOMOBILE BATTERY= 12 VOLTS/ 10Ah
• ALUMINUM HEATSINK= CUT AS PER THE REQUIRED SIZE.
• VENTILATED METAL CABINET= AS PER THE SIZE OF THE WHOLE ASSEMBLY

How to Test it?

• The testing of this mini inverter is done in the following method:

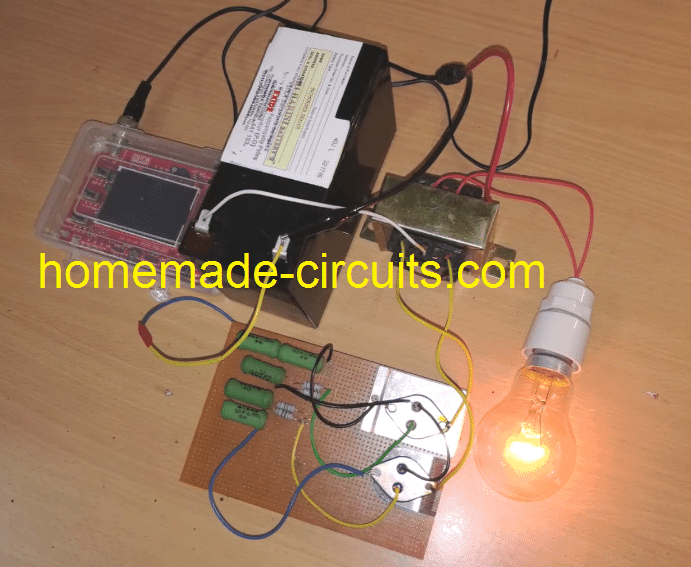

• For testing purpose connect a 60 watt incandescent bulb to the output socket of the inverter.
• Next, connect a fully charged 12 V automobile battery to its supply terminals.
• The 60 watt bulb should immediately light up brightly, indicating that the inverter is functioning properly.
• This concludes the construction and the testing of the inverter circuit.
• I hope from the above discussions you must have clearly understood how to build an inverter which is not only simple to construct but also very affordable to each of you.
• It can be used to power small electrical appliances like soldering iron, CFL lights, small portable fans etc. The output power will lie in the vicinity of 70 watts and is load dependent.
• The efficiency of this inverter is around 75%. The unit may be connected to your vehicles battery itself when outdoors so that the trouble of carrying an extra battery is eliminated.

Circuit Operation

The functioning of this mini inverter circuit is rather unique and different from the normal inverters which involve discrete oscillator stage for powering the transistors.
However here the two sections or the two arms of the circuit operate in a regenerative manner. Its very simple and may be understood through the following points:
The two halves of the circuit no matter how much they are matched will always consist a slight imbalance in the parameters surrounding them, like the resistors, Hfe, transformer winding turns etc.
Due to this, both the halves are not able to conduct together at one instant.
Assume that the upper half transistors conduct first, obviously they will be getting their biasing voltage through the lower half winding of the transformer via R2.
However the moment they saturate and conduct fully, the entire battery voltage is pulled through their collectors to the ground.
This sucks-out dry any voltage through R2 to their base and they immediately stop conducting.
This gives an opportunity for the lower transistors to conduct and the cycle repeats.
The whole circuit thus starts to oscillate.
The base Emitter resistors are used to fix a particular threshold for their conduction to break, they help to fix a base biasing reference level.

2) Using IC 4047

As shown above a simple yet useful little inverter can be built using just a single IC 4047. The IC 4047 is a versatile single IC oscillator, which will produce precise ON/OFF periods across its output pin#10 and pin#11. The frequency here could be determined by accurately calculating the resistor R1 and capacitor C1. These components determine the oscillation frequency at the output of the IC which in turn sets the output 220V AC frequency of this inverter circuit. It may set at 50Hz or 60Hz as per individual preference.
The battery, mosfet and the transformer can be modified or upgraded as per the required output power specification of the inverter.
For calculating the RC values, and the output frequency please refer to the datasheet of the IC

3) Using IC 4049

IC 4049 pin details

In this simple inverter circuit we use a single IC 4049 which includes 6 NOT gates or 6 inverters inside. In the diagram above N1----N6 signify the 6 gates which are configured as oscillator and buffer stages. The NOT gates N1 and N2 are basically used for the oscillator stage, the C and R can be selected and fixed for determining the 50Hz or 60 Hz frequency as per country specs
The remaining gates N3 to N6 are adjusted and configured as buffers and inverters so that the ultimate output results in producing alternating switching pulses for the power transistors. The configuration also ensures that no gates are left unused and idle, which may otherwise require their inputs to be terminated separately across a supply line.
The transformer and battery may be selected as per the power requirement or the load wattage specifications.
The output will be purely a square wave output.
Formula for calculating frequency is given as:
f = 1 /1.2RC,
where R will be in Ohms and F in Farads

4) Using IC 4093

IC 4093 pin details

Quite similar to the previous NOT gate inveter, the NAND gate based simple inverter shown above can be built using a single 4093 IC. The gates N1 to N4 signify the 4 gates inside the IC 4093.
N1, is wired as an oscillator circuit, for generating the required 50 or 60Hz pulses. These are appropriately inverted and buffered using the remaining gates N2, N3, N4 in order to finally deliver the alternately switching frequency across the bases of the power BJTs, which in turn switch the power transformer at the supplied rate for generating the required 220V or 120V AC at the output.
Although any NAND gate IC would work here, using the IC 4093 is recommended since it features  Schmidt trigger facility, which ensures a slight lag in switching and helps creating a kind of dead-time across the switching outputs, making sure that the power devices are never switched ON together even for a fraction of a second.

5) Another Simple NAND gate Inverter using MOSFETs

Another simple yet powerful inverter circuit design is explained in the following paragraphs which can be built by any electronic enthusiast and used for powering most of the household electrical appliances (resistive and SMPS loads).
The use of a couple of mosfets influences a powerful response from the circuit involving very few components, however the square wave configuration does limit the unit from quite a few useful applications.

Introduction

Calculating MOSFET parameters may seem to involve a few difficult steps, however by following the standard design enforcing these wonderful devices into action is definitely easy.
When we talk about inverter circuits involving power outputs, MOSFETs imperatively become a part of the design and also the main component of the configuration, especially at the driving output ends of the circuit.
Inverter circuits being the favorites with these devices, we would be discussing one such design incorporating MOSFETs for powering the output stage of the circuit.
Referring to the diagram, we see a very basic inverter design involving a square wave oscillator stage, a buffer stage and the power output stage.
The use of a single IC for generating the required square waves and for buffering the pulses particularly makes the design easy to make, especially for the new electronic enthusiast.

Using IC 4093 NAND Gates for the Oscillator Circuit

The IC 4093 is a quad NAND gate Schmidt Trigger IC, a single NAND is wired up as an astable multivibrator for generating the base square pulses. The value of the resistor or the capacitor may be adjusted for acquiring either a 50 Hz or 60 Hz pulses. For 220 V applications 50 Hz option needs to be selected and a 60 Hz for the 120 V versions.
The output from the above oscillator stage is tied with a couple of more NAND gates used as buffers, whose outputs are ultimately terminated with the gate of the respective MOSFETs.
The two NAND gates are connected in series such that the two mosfets receive opposite logic levels alternately from the oscillator stage and switch the MOSFETs alternately for making the desired inductions in the input winding of the transformer.

Mosfet Switching

The above switching of the MOSFETs stuffs the entire battery current inside the relevant windings of the transformer, inducing an instant stepping up of the power at the opposite winding of the transformer where the output to the load is ultimately derived.
The MOSFETs are capable of handling more than 25 Amps of current and the range is pretty huge and therefore becomes suitable driving transformers of different power specs.
It’s just a matter of modifying the transformer and the battery for making inverters of different ranges with different power outputs.

Parts List for the above explained 150 watt inverter circuit diagram:

• R1 = 220K pot, needs to be set for acquiring the desired frequency output.
• R2, R3, R4, R5 = 1K,
• T1, T2 = IRF540
• N1—N4 = IC 4093
• C1 = 0.01uF,
• C3 = 0.1uF

TR1 = 0-12V input winding, current = 15 Amp, output voltage as per the required specs
Formula for calculating frequency will be identical to the one described above for IC 4049.
f = 1 /1.2RC. where R = R1 set value, and C = C1

6) Using IC 4060

If you have a single 4060 IC in your electronic junk box, along with a transformer and a few power transistors, you are probably all set to create your simple power inverter circuit using these components. The basic design of the proposed IC 4060 based inverter circuit can be visualized in the above diagram. The concept is basically the same, we use the IC 4060 as an oscillator, and set its output to create alternately switching ON OFF pulses through an inverter BC547 transistors stage.
Just like IC 4047, the IC 4060 requires an external RC components for setting up its output frequency, however, the output from the IC 4060 are terminated into 10 individual pinouts in a specific order wherein the output generate frequency at a rate twice that of its preceding pinout.
Although you may find 10 separate outputs with a rate of 2X  frequency rate across the IC output pinouts, we have selected the pin#7  since it delivers the fastest frequency rate among the rest and therefore may fulfil this using standard components for the RC network, which may be easily available to you no matter in which part of the globe you are situated in.
For calculating the RC values for R2 +P1 and C1 and the frequency you can use the formula as described below:

Or another way is through the following formula:
f(osc) = 1 / 2.3 x Rt x Ct
Rt is in Ohms, Ct in Farads
More info can be obtained from this article
Here's yet another cool DIY inverter idea which is extremely reliable and uses ordinary parts for accomplishing a high power inverter  design, and can be upgraded to any desired power level.
Let's learn more about this simple design

7) Simplest 100 Watt Inverter for the Newcomers

The circuit of a simple 100 watt inverter discussed in this article can be considered as the most efficient, reliable, easy to build and powerful inverter design. It will convert any 12V to 220V effectively using minimum components

The proposed simple 100 watt inverter circuit disign was published quite a long time ago in one of the elektor electronics magazines and according to me this circuit is one of the best inverter designs you can get.

I consider it to be the best because the design is well balanced, well calculated, utilizes ordinary parts and if done everything correctly would start working instantly.
The efficiency of this design is in the vicinity of 85% that's good considering the simple format and low costs involved.

Using an Transistor Astable as the 50Hz Oscillator

Basically the whole design is built around an astable multivibrator stage, consisting of two low power general purpose transistors BC547 along with the associated parts consisting of two electrolytic capacitors and some resistors.
This stage is responsible for generating the basic 50 Hz pulses required for initiating the inverter operations.
The above signals are at low current levels and therefore requires to be lifted to some higher orders. This is done by the driver transistors BD680, which are Darlington by nature.
These transistors receive the low power 50 Hz signals from the BC547 transistor stages and lift them at higher current levels so that it can be fed to the output transistors.
The output transistors are a pair of 2N3055 which receive an amplified current drive at their bases from the above driver stage.

2N3055 Transistors as the Power Stage

The 2N3055 transistors thus are also driven at high saturation and high current levels which gets pumped into the relevant transformer windings alternately, and converted into the required 220V AC volts at the secondary of the transformer.

Parts List for the above explained simple 100 watt inverter circuit

• R1,R2 = 27K, 1/4 watt 5%
• R3,R4,R5,R6 = 330 OHMS, 1/4 watt 5%
• R7,R8 = 22 OHMS, 5 WATT WIRE WOUND TYPE
• C1,C2 = 470nF
• T1,T2 = BC547,
• T3,T4 = BD680, OR TIP127
• T5,T6 = 2N3055,
• D1,D2 = 1N5402
• TRANSFORMER = 9-0-9V, 5 AMP
• BATTERY = 12V,26AH,

Heatsink for the T3/T4, and T5/T6

Specifications:

1. Power Output: 100 watts if single 2n3055 transistors are used on each channels.
2. Frequency: 50 Hz, Square Wave,
3. Input Voltage: 12V @ 5 Amps for 100 Watts,
4. Output Volts: 220V or 120V(with some adjustments)

From the above discussion you might be feeling thoroughly enlightened regarding how to build these 7 simple inverter circuits, by configuring a given basic oscillator circuit with a BJT stage and a transformer, and by incorporating very ordinary parts which may be already existing with you or accessible by salvaging an old assembled PC board.

How to Calculate the Resistors and Capacitors for 50 Hz or 60 Hz Frequencies

In this transistor based inverter circuit, the oscillator design is built using a transistorized astable circuit.
Basically the resistors and capacitors associated with the bases of the transistors determine the frequency of the output. Although these are correctly calculated to produce approximately 50 Hz frequency, if you are further interested to tweak the output frequency as per own preference you can easily do so by calculating them through this Transistor Astable Multivibrator Calculator.


__________________________________________________________________________________



                                                                   SOLAR INVERTER




Typically, grid connected inverters have a life span ranging from 10 to 20 years. You should expect most to last 10 years minimum. Solar inverters have warranties ranging from 5 to 12 years with an increasing number of manufacturers offering pay for service warranty extension .








When your solar panels collect sunlight and turn it into energy, it gets sent to the inverter, which takes the DC energy and turns it into AC energy. At that point, your solar electricity can power your appliances and electronics or, if you're producing more electricity than you need, it can feed back into the grid.
Most inverters will derate at around 45 – 50 Degrees C. In the inhabited places of Planet Earth, temperature will rarely climb above 45 degrees C (113 Degrees F). So, simply putting the inverter in a shaded area with good airflow will almost always result in an inverter that doesn't derate.

top 5 Solar inverters - Residential

• Fronius. Fronius Inverters have surged in popularity since the release of the snap-in design around 4 years ago. ...
• SolarEdge. The compact SolarEdge HD wave solar inverter. ...
• SMA. SMA Sunny Boy AV solar inverter. ...
• Sungrow. ...
• Solax Power.

We have limited natural resources and that too we are using in generating Electricity. That’s why there is lot of emphasis is given on generating and using clean energy. Today in this project, we will see how electricity can be generated from the sunlight, how it can be stored in the form of DC, and then how it is converted into AC to drive home appliances.

In a solar power plant, solar energy is converted into electrical energy by using photovoltaic solar panels and then generated DC (Direct Current) is stored in batteries which is further converted by into Alternating Current (AC) by solar inverters. Then this AC is fed into commercial electrical grid or can be directly supplied to the consumer. In this tutorial, we will show how to make a Small Solar Inverter Circuit for Home Appliances.

Here SG3524 chip is the primary component to build a Solar Inverter. It has complete circuitry for Pulse Width Modulator (PWM) control. It also has all the functions to construct a Regulated Power Supply. SG3524 chip offers improved performance and requires less external parts while building switching power supplies.

SG3524 - Regulating Pulse-Width Modulators

SG3524 incorporates all the necessary functions to design a switching regulator and inverter. This IC can also be used as a control element for high-power applications.

Some of the application of SG3524 IC are:

• Transformer-coupled DC-DC converters
• Voltage doublers without using transformer
• Polarity-converter applications
• Pulse-width modulation (PWM) techniques

This single IC consists of on-chip regulator, programmable oscillator, error amplifier, pulse-steering flip-flop, two uncommitted pass transistors, a high-gain comparator, and current-limiting & shut-down circuitry.



TIP41 High Power NPN Transistor

TIP41 is a general purpose NPN Power transistor with high switching speed and improved Gain, mainly used for medium power Linear Switching Applications. Due to high rating of V_CE, V_CB and V_EB which is 40V, 40V and 5V respectively, we have used this transistor for inverter circuit. Also, it has a maximum collector current of 6A.

Here, in this circuit these transistors are used for driving the 12-0-12 Step-up transformer.



Material Required

• SG3254 IC
• Solar Panel
• TIP41 High Power NPN Transistor
• Resistors (4 ohm,100k, 1k, 4.7k, 10k, 100k)
• Capacitors (100uf, 0.1uf, 0.001uf)
• 12-0-12 Step-Up-transformer
• Connecting Wires
• Breadboard

Circuit Diagram

Working of Solar Inverter Circuit

Initially, the solar panel is charging the rechargeable battery and then the battery is supplying voltage to the inverter circuit. To know more about charging a battery using solar panel follow this circuit. Here, we are using RPS instead of rechargeable battery.

The circuit consists of IC SG3524 which operates at a fixed frequency, and this frequency is determined by 6^th and 7^th pin of the IC which is RT and CT. RT set up a charging current for CT, so a linear ramp voltage exists at CT, which is further fed to the inbuilt comparator.

For providing reference voltage to the circuit SG3524 have an inbuilt 5V regulator. A voltage divider network is created by using two 4.7k ohm resistors which feeds the reference voltage to the inbuilt error amplifier. Then the amplified output voltage of error amplifier is compared with the linear voltage ramp at CT by the comparator, hence producing a PWM (Pulse Width Modulation) pulse.

This PWM is further fed to the output pass transistors through the pulse steering flip flop. This pulse steering flip flop is synchronously switched by the inbuilt oscillator output. This oscillator pulse also acts as a blanking pulse to ensure that both the transistors are never turned ON simultaneously during the transition times. The value of CT controls the duration of the blanking pulse.

Now, as you can see in the circuit diagram pin 11 and 14 are connected to the TIP41 transistors for driving the step up transformer. When output signal at pin 14 is HIGH, transistor T1 turns ON and current flows from the source to the ground via the upper half of the transformer. And, when output signal at pin 11 is HIGH, transistor T2 turns ON and current flows from the source to the ground via the lower half of the transformer. Therefore, we receive Alternating Current at the output terminal of the step up transformer.

** In some cases, problem inverters only need a reboot and are not broken at all. In other cases, we may recommend inverter repair or a complete inverter replacement. Every day you spend with a faulty panel or inverter costs you money.

** Four AWG battery cables should be used on power inverters rated up to 1500 watts and most commonly used on 900, 1000, 1100, 1200 watt inverters.

_________________________________________________________________________________



                     Working of Solar Inverter, Its Advantages and Disadvantages



Solar Inverter Currently, the necessity  of  the solar inverter has been improving day by day.  It is a common inverter,  but uses energy from  the sun  that is termed as “solar energy”. This kind of inverter helps in changing the DC-AC uses solar power. In this circuit, the DC power flows in one direction and also assists in supplying current when there is no electricity.DC is used for  minor appliances like electronic gadgets, MP3 players, iPod, etc (where there is power stored in the battery). In the case of  alternative  current (AC)  is the power that stores back and forth inside the circuit. Usually, the AC power is used for home appliances. A solar inverter aids several devices that  work on DC power  to run on AC power so that the worker makes use of  the AC power. If  you  are  thinking  this  inverter  is  as an alternate to the  normal electric one, then it is due to the solar  inverter  that makes use of  the solar energy which is available in sufficient from the Sun and is spotless and also pollution free.

What is a Solar Inverter?

The Solar Inverter is an important device  in any solar based  power system.  The basic function of this inverter  is to alter  the flexible DC o/p of  the solar panels into AC. The various electrical and electronic components are used to make the circuit to help in the conversion.

The changed AC power is used for running your home appliances. For some specific applications, we can directly use the  DC power from  the solar panel like a cell phone charger. LED night lights. Normally, the power of a home solar power system is used for power AC loads.

Solar Inverter Project

The main scope of the project is, the photovoltaic cells are converting the sunlight into electricity a charge controller is used. PV cells are bundled together in modules or panels to produce higher voltages and increased power. As the sunlight varies in intensity the electricity, so generated. Usually charges through the charge a set of batteries for storing the energy.

Hardware Requirements

• Battery
• PWM
• inverter
• MOSFET
• Photovoltaic cells/solar cells
• Resistor
• Capacitor

Solar Inverter Block Diagram by Edgefxkits.com

Battery

An electrical battery is a combination of one or more electrochemical cells, used to convert stored chemical energy into electrical energy. The battery has become a common power source for many household, robotics and industrial applications.Larger batteries provide standby power for telephone exchanges or computer data centers.

Battery

PWM Inverter IC

The PWM Inverter is used to develop the PWM pulses based on a fixed frequency  using a common oscillator The IC SG3524 operates at a fixed frequency, the oscillation frequency is determined by one timing resistor RT and one timing capacitor CT.The SG3524 contains an inbuilt 5V regulator that supplies as a reference voltage, also providing the SG3524 internal regulator control circuitry. Comparator provides a linear control of the output pulse width (duration) by the error amplifier.The resultant PWM pulse from the comparator is passed to the corresponding output pass transistor (Q1, Q2 refers block diagram) using the pulse steering flip flop, which is synchronously toggled by the oscillator output.

PWM Inverter IC

MOSFET(IRF 510)

The metal–oxide–semiconductor field-effect transistor (MOSFET, MOS-FET, or MOS FET) is a device used for amplifying or switching electronic signalsThe basic principle of the device a voltage on the oxide-insulated gate electrode can induce a conducting channel between the two other contacts called the source and drainIt is by far the most common transistor in both digital and analog circuits, though the bipolar junction transistor was at one time much more common.

MOSFET (IRF 510)

BC547 (NPN –Transistor)

The BC547 transistor is an NPN Epitaxial Silicon Transistor.It is used in general-purpose switching and amplification BC847/BC547 series 45 V, 100 mA NPN general-purpose transistors.The ratio of two currents (Ic/Ib) is called the DC Current Gain of the device and is given the symbol of hfe or nowadays Beta, (β). The current gain from the emitter to the collector terminal, Ic/Ie, is called Alpha, (α), and is a function of the transistor itself.



1N4148

The 1N4148 is a standard small signal silicon diode used in signal processing. The 1N4148 is generally available in a DO-35 glass package and is very useful at high frequencies with a reverse recovery time of no more than 4ns. This permits rectification and detection of radio frequency signals very effectively, as long as their amplitude is above the forward conduction threshold of silicon (around 0.7V) or the diode is biased.

1N4148

Photovoltaic Cells

Photovoltaic (PV) cells are made of special materials called semiconductors such as silicon, which is currently the most commonly used. Basically, when light strikes the cell, a certain portion of it is absorbed within the semiconductor material. PV cells also all have one or more electric fields that act to force electrons freed by light absorption to flow in a certain direction. This flow of electrons is a current, and by placing metal contacts on the top and bottom of the PV cell, we can draw that current off to use externally.

Solar Panel

Expose the cell to light, and the energy of each photon (light particle) hitting the silicon, will liberate an electron and a corresponding hole. If this happens within range of the electric field’s influence, the electrons will be sent to the N side and the holes to the P one, resulting in yet further disruption of electrical neutralityThis flow of electrons is a current; the electrical field in the cell causes a voltage and the product of these two is power.

Solar Panel

Solar Inverter Project Working

The main concept of this project is to design a solar energy based inverter for household applications. The hardware requirements of this project include Step up Transformer, Bridge-MOSFETs drive, Solar Panel, MOSFET driver, Voltage regulator, PWM inverter IC, and Battery. Sun powered vitality is changed to electrical vitality with the assistance of photovoltaic cells. This vitality is put away in batteries amid daytime for the operation reason at whatever point required. The proposed framework is intended to use sunlight based vitality for home burdens utilizing an inverter.

A sun oriented inverter changes over the DC (Direct Current) o/p of a PV sunlight based board into a utility frequency AC (alternating current) that can be sustained into a business electrical network (or) utilized by a local, off-line electrical n/w.

In this project, the sun oriented vitality is stored in the battery from PV cells. This vitality of the battery changes to AC supply of 50Hz frequency utilizing PWM inverter IC with MOSFET to the driver MOSFET connects and step up the voltage by a transformer, all in an off-line n/w only just however not lattice tie sort.

For test purposes a battery of the SMF sort of and 5 AH (not provided, it is for the most part utilized as a part of little UPS) is important to be utilized as sun oriented cells required would be of the high power sort throwing high. Additionally, this system can be added to a charge controller for over voltage, under voltage protection and over-burden security.

Advantages of Solar Inverter

After discussing in detail about a solar inverter and how it is a fit for making appliance work at housing & trade levels we must discuss about the numerous advantages of the solar inverter.

• Solar energy has continually helped in diminishing the greenhouse impact and an unnatural weather change.
• By utilizing of sun based gadgets will help in sparing cash and furthermore vitality. Since many individuals have begun utilizing these gadgets.
• A sun powered inverter helps in changing the DC into batteries or AC. This backings individuals who utilize an incomplete measure of power.
• The synchronous solar inverter that enables small homeowners and furthermore to control organizations as they are tremendous in measure.
• The multifunction sunlight based inverter is the finest among all and works effected. It changes over the DC to AC deliberately which is appropriate for business foundations.
• This inverter is financially effective, i.e. ease than generators. Apart from these, there are extra gadgets as well that make the utilization of sunlight based vitality, for example, solar heater, cooker.

Disadvantages of Solar Inverter

• Primarily, we have to spend a considerable measure of cash for buying a solar based inverter
• It will work productively and create DC just when the sunshine is solid. The solar panels are utilized to draw in the daylight needs lots of space.
• Solar Inverters can work when there is no Sunshine yet the battery which is accessible in that is charged completely with the assistance of Sunshine.






       What is the future of service robots?

Standardisation defines a service robot as, “a robot that performs useful tasks for humans or equipment, excluding industrial automation applications”. It’s predicted that these types of robots will play a greater role in the maintenance, security and rescue markets, but interestingly, the latest sector to embrace automation and robotics is tourism.
Italy’s first robot concierge, Robby Pepper, has been employed to answer the frequent questions from the guests at a popular hotel resort. Programmed to understand and respond in Italian, English and German, Robby has been taught the locations of spas, restaurants and opening times to relieve overwhelmed staff during the summer tourist season.
This is just one example of how the rise of artificial intelligence (AI) and robotics is being utilised to improve the services offered across sectors.
Specialist robots like Robby are often required to be autonomous and free from an alternating current (AC) supply. Original equipment manufacturers (OEMs) therefore integrate portable batteries into their designs to power service robots.
The problem is that, as manufacturers create more intuitive robots, the power demands for these devices become significantly greater and often beyond the capability of many existing power sources.
At Ultralife, we understand that being able to reliably power a robotic system is important to avoid the financial burden of unexpected downtime, reprogramming and maintenance. This is why we created the range of primary, non-rechargeable, Lithium Thionyl Chloride and Lithium Manganese Dioxide cells and batteries.
These batteries can be integrated by OEMs and design engineers as backup batteries into service robot applications to ensure safe operation. Users also have the added benefit of the batteries featuring Ultralife’s Smart Circuit technology. This smart functionality provides users with critical information including cycle count, remaining run-time and remaining capacity, for added safety.

for example, are programmed to learn and improve their knowledge while in operation. Depending on the memory storage feature installed in the device, loss of power could impact the robot’s development. If the robot uses flash memory settings for example, then any information Robby stored could be forgotten because of losing power.
Unlike industrial robots, service robots are at work in a wide range of environments and everyday life applications. Often using more advanced technology, service robots face distinct power requirements as a result. So, having a backup power source is essential to help businesses avoid frequent re-teaching or reprogramming any critical or previously learned information.
With the IFR expecting to see a substantial increase in the use of service robots across industry, OEMs and design engineers must consider the power source that’s going to operate their application. Robby may be the first Italian robot concierge but, providing every service robot can be reliably powered and reduce the pressure of medial tasks during busy periods, it is very unlikely he will be the last.




 ___________________________________________________________________________________

                                    ROBOTIC AND INVERTER DIGITALLY


DIGITAL WORKFORCE





 System integration has been around already for a while. Its lofty goal is to bring together different systems and get them to work together so well, they can be regarded as a single system, instead of a collection of systems.

Advance your robots with technology and insight

The robotics sector is booming, creating a wealth of new opportunities in manufacturing, logistics and beyond. Today’s robots are able to identify and navigate their surroundings, work alongside humans and teach themselves the skills required to complete a new task. Though they are capable of doing more and more, robots are becoming easier and easier to operate. Outside the boundaries of their traditional workplace behind a safety fence, these robots are assisting in and enhancing a host of new and conventional applications.
All this wouldn’t be possible without semiconductor solutions. Whether in an industrial robot, a cobot or an automated guided vehicle (AGV), intelligent semiconductors are the key enabler for all major robotic functions, from sensing and motion control to functional safety to security.



Ready-to-use solutions for the latest robotics trends

No matter the precise robotics application, at Infineon you’ll find ready-to-use semiconductor solutions that cover all major robotic trends. This includes power management, motor control, security, communication, environmental sensing, and position and condition sensing.



Focus on what really counts

The success of a robotics project often hinges on the availability and scalability of the semiconductor solutions required. At our manufacturing sites, we produce flexibly to your specifications while always upholding the highest quality standards. Collaborate with us to benefit from our unique capabilities, outstanding robotics expertise and dedicated application support.








________________________________________________________________________________
